DTC P0504-2B: Brake Switch "A"/"B" Signal Cross Coupled [08/2016 - 11/2017]: Wiring Diagram

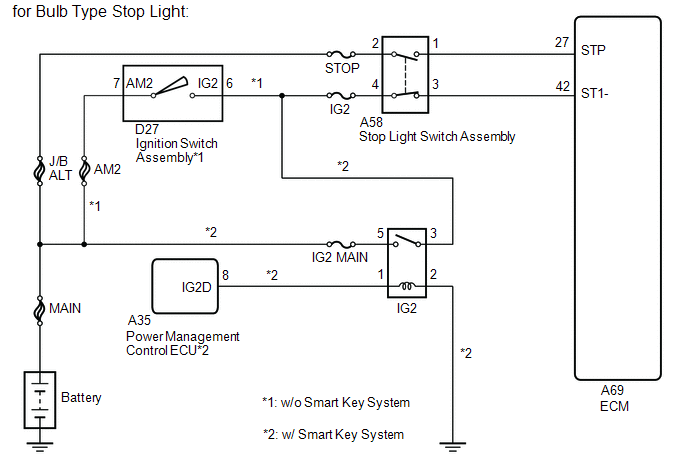

GTY729001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

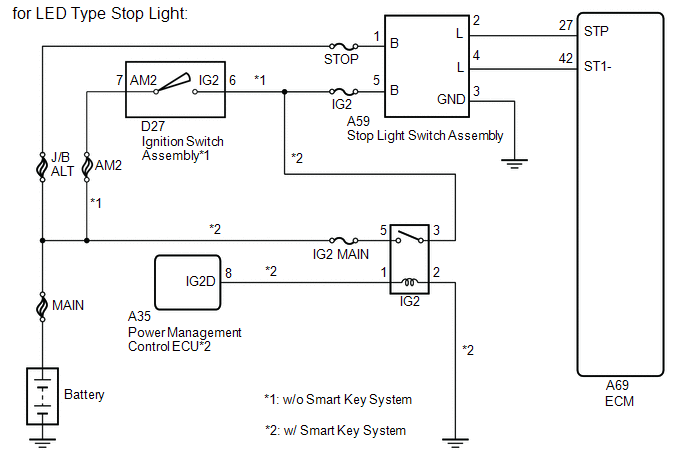

GTY707419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
