Installation [08/2016 - ]: Procedure

  1. INSTALL VACUUM WARNING SWITCH GROMMET
    1. Install a new vacuum warning switch grommet to the brake booster assembly.
  2. INSTALL VACUUM WARNING SWITCH ASSEMBLY
    1. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

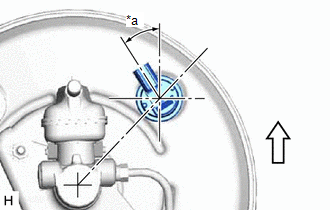

      GTY677371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 40° +/- 10°
      Up
    2. Connect the connector to the vacuum warning switch assembly.
  3. INSTALL FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  4. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  6. INSTALL FRONT FENDER TO COWL SIDE SEAL LH

    Refer to PROCEDURE - Step 4

  7. INSTALL FRONT FENDER TO COWL SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  8. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  9. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH

    Refer to PROCEDURE - Step 7

  10. INSTALL FRONT WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 8
