Components [08/2016 - ]

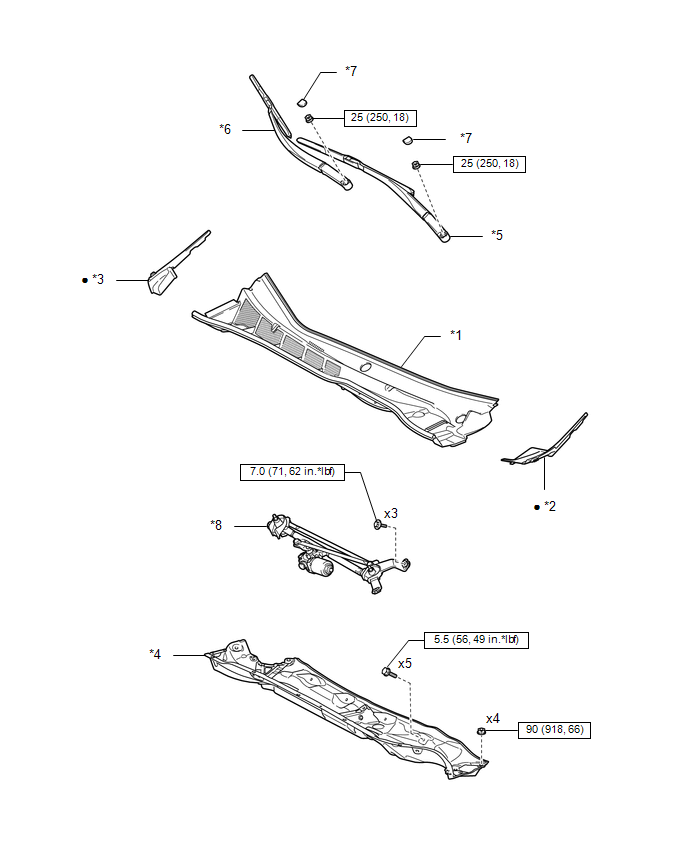

Fig 1: Vacuum Warning Switch Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT FENDER TO COWL SIDE SEAL LH
*3	FRONT FENDER TO COWL SIDE SEAL RH	*4	FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY
*5	FRONT WIPER ARM AND BLADE ASSEMBLY LH	*6	FRONT WIPER ARM AND BLADE ASSEMBLY RH
*7	FRONT WIPER ARM HEAD CAP	*8	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

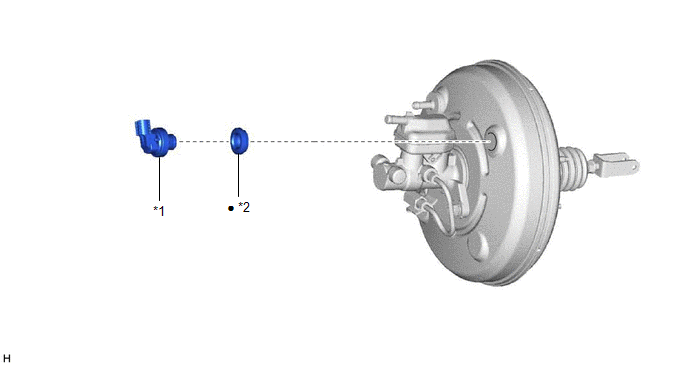

Fig 2: Vacuum Warning Switch Replacement Components (2 Of 2)

*1	VACUUM WARNING SWITCH ASSEMBLY	*2	VACUUM WARNING SWITCH GROMMET
•	Non-reusable part	-	-
