Components [08/2016 - ]

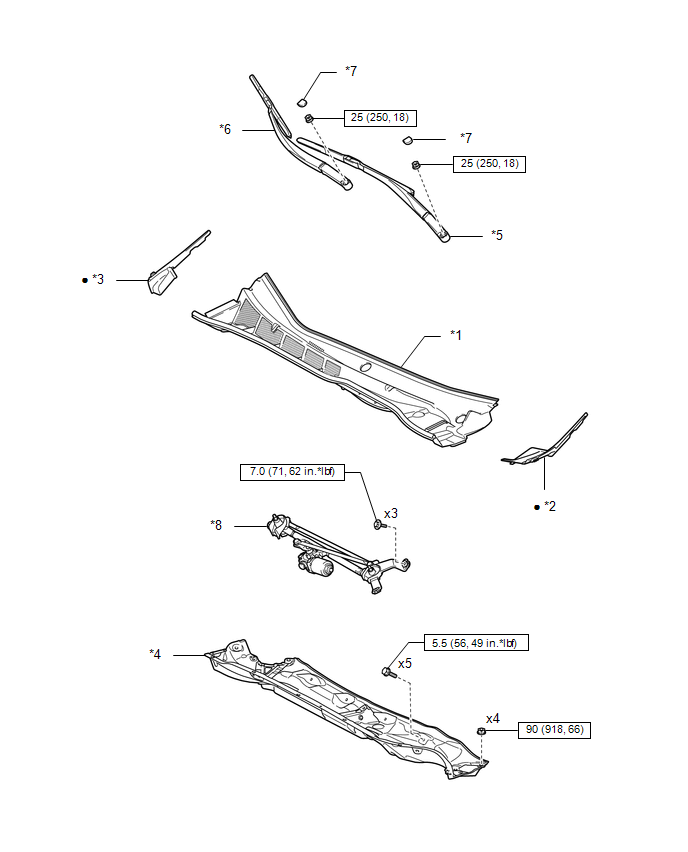

Fig 1: Vacuum Pump Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT FENDER TO COWL SIDE SEAL LH
*3	FRONT FENDER TO COWL SIDE SEAL RH	*4	FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY
*5	FRONT WIPER ARM AND BLADE ASSEMBLY LH	*6	FRONT WIPER ARM AND BLADE ASSEMBLY RH
*7	FRONT WIPER ARM HEAD CAP	*8	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

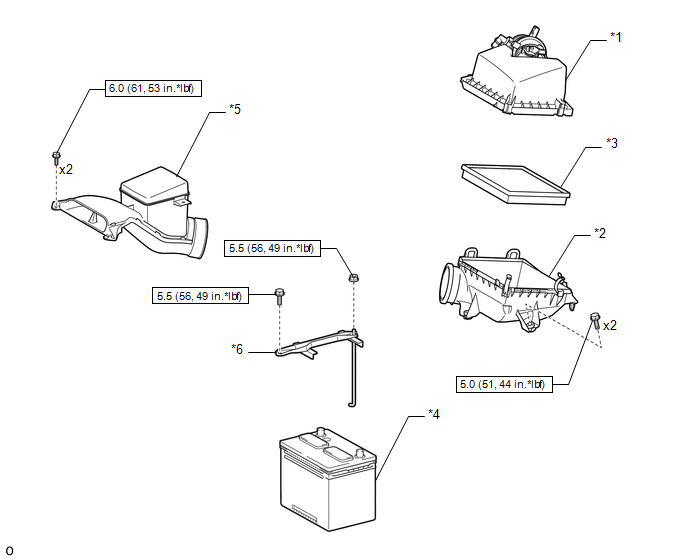

Fig 2: Vacuum Pump Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	AIR CLEANER CASE SUB-ASSEMBLY
*3	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	*4	BATTERY
*5	INLET AIR CLEANER ASSEMBLY	*6	BATTERY CLAMP
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

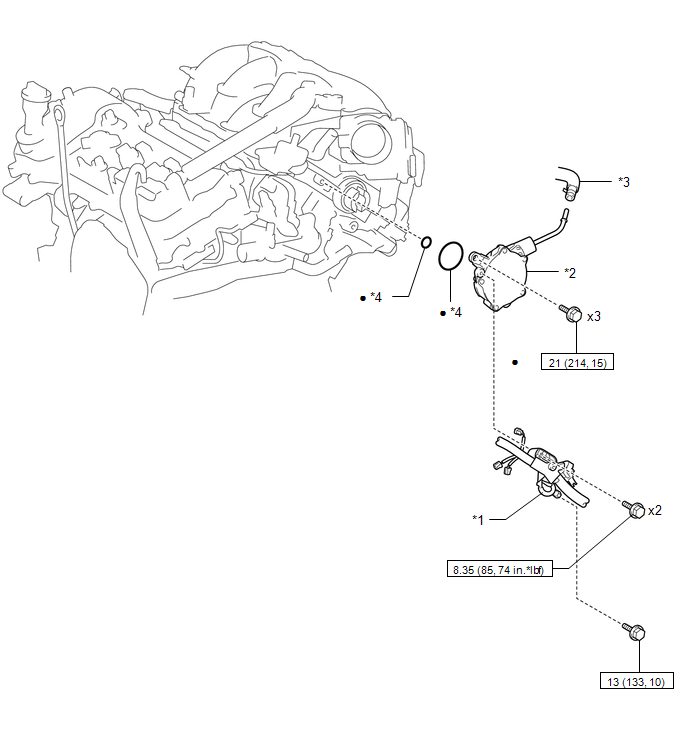

Fig 3: Vacuum Pump Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	ENGINE ROOM MAIN WIRE	*2	VACUUM PUMP ASSEMBLY
*3	AIR TUBE	*4	O-RING
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-
