Removal [12/2015 - ]: Procedure

(Refer to REMOVAL [12/2015 - ] )

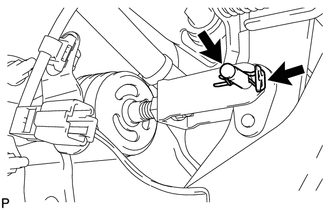

1. Remove the clip and brake master cylinder push rod clevis pin and separate the brake master cylinder push rod clevis from the brake pedal support assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 1

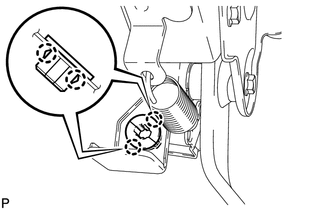

1. Disengage the 2 claws and remove the stop light switch mounting adjuster.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

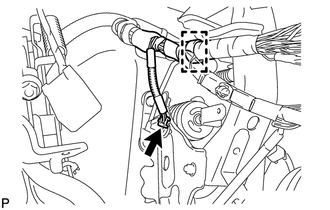

1. Disconnect the connector and separate the harness clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

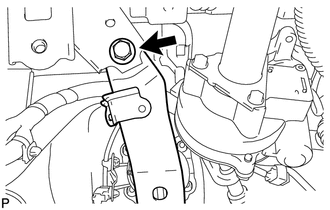

2. Remove the bolt and separate the brake pedal support assembly from the instrument panel reinforcement.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

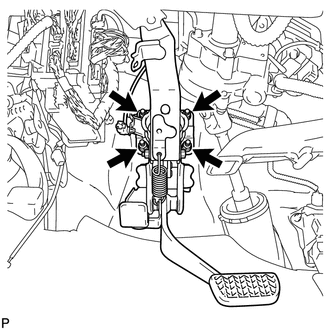

3. Remove the 4 nuts and brake pedal support assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Push out the brake booster assembly toward the engine compartment if necessary.

   NOTE:

   Do not apply excessive force to the brake lines.
