Toyota
>>
2019
>>
Sienna Limited, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Brake System (Hydraulic) (Service Information)
>>
Brake Pedal
>>
Components [12/2015 - ]
Components [12/2015 - ]

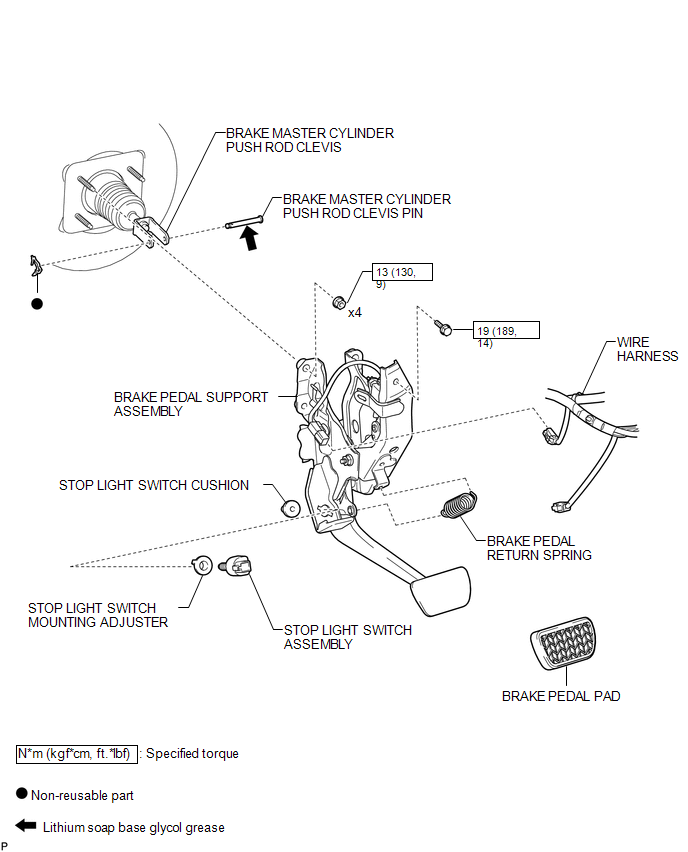

Fig 1: Brake Pedal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
