Installation [08/2016 - ]: Procedure
- INSPECT AND ADJUST BRAKE BOOSTER PUSH ROD
See step 1
- INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY
- Install a new O-ring to the brake master cylinder sub-assembly.
- Install the brake master cylinder sub-assembly to the brake booster assembly with the 2 nuts.
Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
NOTE:- The master cylinder requires careful handling. Do not allow the master cylinder to receive any impact, such as from being dropped. Do not reuse a master cylinder that has been dropped.
- Do not strike or pinch the master cylinder piston, and do not cause any damage to the master cylinder piston by any other means.
- When installing the master cylinder to the brake booster, or when removing the master cylinder from the brake booster, make sure that the master cylinder is kept horizontal or its tip faces downward (the piston faces upward) to prevent the master cylinder piston from falling out.
- Do not allow any foreign matter to contaminate the master cylinder piston. If foreign matter gets on the piston, remove it by using a piece of cloth and then apply an even layer of lithium soap based glycol grease around the circumference (sliding part) of the piston.
- Do not use any other type of grease or fluid.

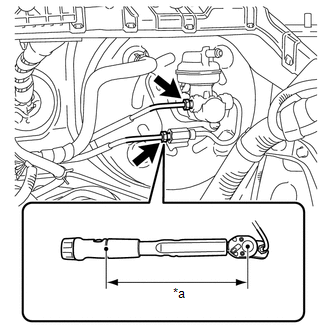

- Using a union nut wrench (12 mm), connect the 2 brake lines to the brake master cylinder sub-assembly.
Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)
NOTE:- Do not kink or damage the brake master cylinder to way tube.
- Do not allow the brake master cylinder to way tube to twist or interfere with other parts during tightening.
- Do not allow any foreign matter such as dirt or dust to enter the brake master cylinder to way tube from the connecting parts.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [08/2016 - ]
- When using a union nut wrench (fulcrum length of 20 mm (0.787 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 17.4 N*m (177 kgf*cm, 13 ft.*lbf)
*a Torque Wrench Fulcrum Length
- CONNECT NO. 1 RESERVOIR TUBE
- Connect the No. 1 reservoir tube to the brake master cylinder reservoir sub-assembly.
- INSTALL AIR CLEANER CASE SUB-ASSEMBLY
Refer to PROCEDURE - Step 64
- INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Refer to PROCEDURE - Step 65
- INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 3
- INSTALL BATTERY
Refer to PROCEDURE - Step 68
- INSTALL INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 67
- FILL RESERVOIR WITH BRAKE FLUID
See step 2
- BLEED BRAKE MASTER CYLINDER
See step 3
- BLEED BRAKE LINE
See step 4
- BLEED BRAKE ACTUATOR
See step 5
- INSPECT FOR BRAKE FLUID LEAK
- INSPECT FLUID LEVEL IN RESERVOIR
See step 1
