Brake Master Cylinder
>>
Components [12/2015 - 08/2016]
Components [12/2015 - 08/2016]

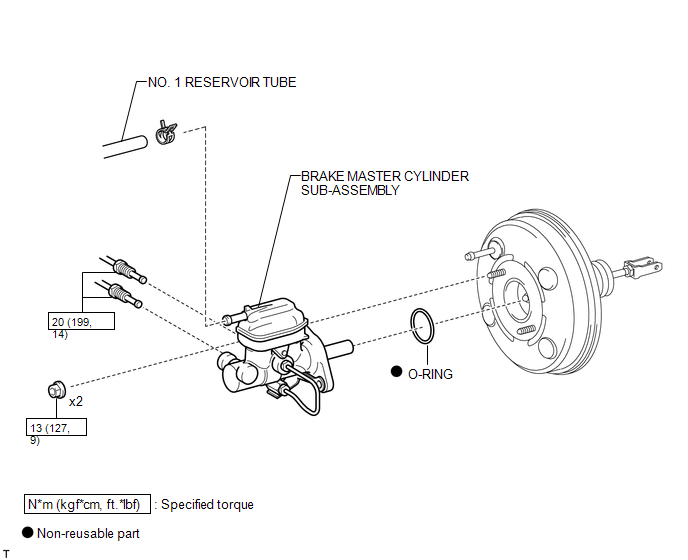

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications [12/2015 - 08/2016] (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

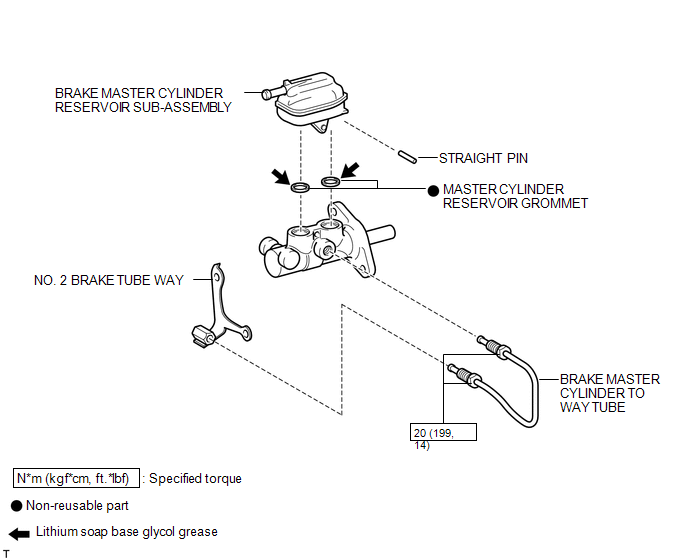

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications [12/2015 - 08/2016] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Brake Master Cylinder Replacement Components With Torque Specifications [12/2015 - 08/2016] (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
