Replacement [12/2015 - ]: Procedure

  1. REMOVE COWL TOP VENTILATOR LOUVER BRACKET RH
    1. Disengage the 2 claws and 2 guides and remove the cowl top ventilator louver bracket RH.

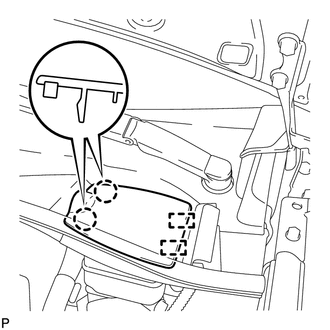

      GTY299078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FILL RESERVOIR WITH BRAKE FLUID
    1. Remove the brake master cylinder reservoir filler cap assembly.

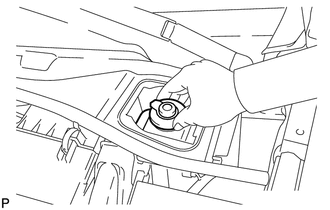

      GTY299079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fill the reservoir with brake fluid.

      Brake Fluid

      SAE J1703 or FMVSS No. 116 DOT 3

      NOTE:

      Make sure that there is sufficient brake fluid in the reservoir.

  3. REPLACE BRAKE LINE
    NOTE:
    • Add brake fluid to keep the level between the MIN and MAX lines of the reservoir while bleeding the brakes.
    • If brake fluid leaks onto any painted surface, immediately wash it off.
    1. Connect a vinyl tube to the bleeder plug.
    2. Depress the brake pedal several times, and then loosen the bleeder plug with the pedal depressed*1.

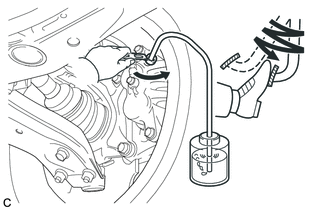

      GTY203920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. When fluid stops coming out, tighten the bleeder plug, and then release the brake pedal*2.

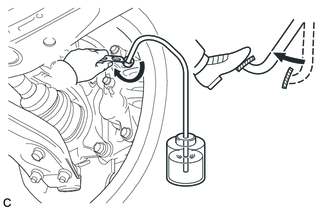

      GTY203921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Repeat *1 and *2 until all the air in the fluid is completely bled out.
    5. Tighten the bleeder plug completely.

      Front bleeder plug

      Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

      Rear bleeder plug

      Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

    6. Repeat the above procedure for each wheel to bleed the brake line.
  4. INSPECT FOR BRAKE FLUID LEAK
  5. INSPECT FLUID LEVEL IN RESERVOIR

    See step  1

  6. INSTALL COWL TOP VENTILATOR LOUVER BRACKET RH
    1. Engage the 2 guides and 2 claws and install the cowl top ventilator louver bracket RH.
      GTY299078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CHECK AND CLEAR DTCS

    (Refer to DTC CHECK / CLEAR [12/2015 - 11/2017] , or refer to DTC CHECK / CLEAR [11/2017 - ] )
