Removal [08/2016 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  9. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 20

  10. REMOVE BATTERY

    Refer to PROCEDURE - Step 19

  11. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 4

  12. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  13. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  14. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  15. DISCONNECT NO. 1 RESERVOIR TUBE

    See step  7

  16. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY

    See step  8

  17. DISCONNECT VACUUM HOSE ASSEMBLY

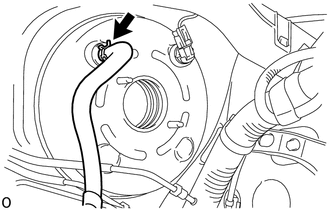

    1. Slide the clip and disconnect the vacuum hose assembly.
      GTY705599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. SEPARATE ENGINE ROOM MAIN WIRE

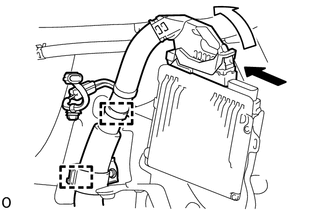

    1. Disengage the 2 clamps.
      GTY693405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

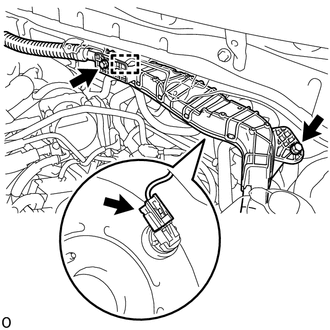

    2. Raise the lever while pushing the lock on the lever, and disconnect the ECM connector.
    3. Disconnect the vacuum warning switch assembly connector.
    4. Remove the 2 bolts and clamp and separate the engine room main wire.
      GTY693406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. SEPARATE NO. 1 FRONT BRAKE TUBE ASSEMBLY
    1. Disengage the clamp and separate the No. 1 front brake tube assembly.
      GTY306301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the brake lines or clamps. If any parts are damaged, replace them with new ones.

  20. REMOVE KNEE AIRBAG ASSEMBLY

    Refer to REMOVAL [12/2015 - ]

  21. REMOVE BRAKE MASTER CYLINDER PUSH ROD CLEVIS
    1. Loosen the lock nut.
      GTY299068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and the push rod pin and separate the push rod clevis from the brake pedal support assembly.
    3. Remove the brake master cylinder push rod clevis and lock nut from the brake booster assembly.
  22. REMOVE BRAKE BOOSTER ASSEMBLY
    1. Remove the 4 nuts and brake booster assembly.
      GTY299074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the brake lines.

  23. REMOVE BRAKE BOOSTER GASKET
    1. Remove the brake booster gasket from the brake booster assembly.
      GTY299072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE BRAKE VACUUM CHECK VALVE ASSEMBLY
    1. Remove the vacuum check valve assembly from the brake booster assembly.
  25. REMOVE VACUUM WARNING SWITCH ASSEMBLY
    1. Remove the vacuum warning switch assembly from the brake booster assembly.
      GTY693407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE VACUUM WARNING SWITCH GROMMET
    1. Remove the 2 vacuum warning switch grommets from the brake booster assembly.
