Installation [08/2016 - ]: Procedure

  1. INSTALL VACUUM WARNING SWITCH GROMMET
    1. Install 2 new vacuum warning switch grommets to the brake booster assembly.
  2. INSTALL VACUUM WARNING SWITCH ASSEMBLY

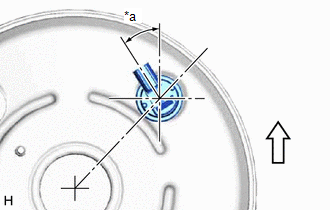

    1. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY698187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 40° +/- 10°
      Up
  3. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY
    1. Install the vacuum check valve assembly to the brake booster assembly.
  4. INSTALL BRAKE BOOSTER GASKET
    1. Install a new brake booster gasket to the brake booster assembly.
  5. INSTALL BRAKE BOOSTER ASSEMBLY
    1. Install the brake booster assembly with the 4 nuts.

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

      NOTE:

      Be careful not to damage the brake lines or clamps. If any parts are damaged, replace them with new ones.

  6. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS
    1. Install the lock nut and brake master cylinder push rod clevis to the brake booster assembly.
    2. Tighten the lock nut.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

    3. Apply lithium soap base glycol grease to the push rod pin.
    4. Install the push rod clevis onto the brake pedal support assembly with the push rod pin and new clip.
  7. INSTALL KNEE AIRBAG ASSEMBLY

    Refer to INSTALLATION [12/2015 - ]

  8. INSTALL NO. 1 FRONT BRAKE TUBE ASSEMBLY
    1. Engage the clamp to install the No. 1 front brake tube assembly.
      NOTE:

      Be careful not to damage the brake lines or clamps. If any parts are damaged, replace them with new ones.

  9. INSTALL ENGINE ROOM MAIN WIRE
    1. Engage the clamp and 2 bolts and install the engine room main wire.

      Torque: 7.3 N*m (74 kgf*cm, 64 in.*lbf)

    2. Connect the vacuum warning switch assembly connector.

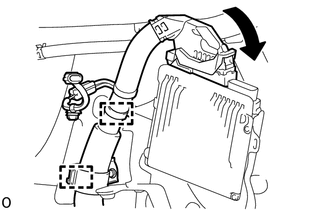

    3. Connect the ECM connector and lower the lever.
      GTY732425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When connecting the connectors, make sure that dirt, water or other foreign matter does not become stuck between the connectors and other parts.
      • Make sure that the lever is securely locked.
    4. Engage the 2 clamps.
  10. CONNECT VACUUM HOSE ASSEMBLY
    1. Connect the vacuum hose assembly to the vacuum check valve and slide the clip.
  11. INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY

    See step  2

  12. CONNECT NO. 1 RESERVOIR TUBE

    See step  3

  13. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 64

  14. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 65

  15. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  16. INSTALL BATTERY

    Refer to PROCEDURE - Step 68

  17. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 67

  18. FILL RESERVOIR WITH BRAKE FLUID

    See step  2

  19. BLEED BRAKE MASTER CYLINDER

    See step  3

  20. BLEED BRAKE LINE

    See step  4

  21. BLEED BRAKE ACTUATOR

    See step  5

  22. INSPECT FOR BRAKE FLUID LEAK
  23. INSPECT FLUID LEVEL IN RESERVOIR

    See step  1

  24. INSTALL FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  25. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to PROCEDURE - Step 2

  26. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  27. INSTALL FRONT FENDER TO COWL SIDE SEAL LH

    Refer to PROCEDURE - Step 4

  28. INSTALL FRONT FENDER TO COWL SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  29. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  30. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH

    Refer to PROCEDURE - Step 7

  31. INSTALL FRONT WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 8

  32. INSPECT BRAKE PEDAL HEIGHT

    See step  1

  33. INSPECT BRAKE PEDAL FREE PLAY

    See step  3

  34. INSPECT BRAKE PEDAL RESERVE DISTANCE

    See step  4
