Brake Booster
>>
Components [12/2015 - 08/2016]
Components [12/2015 - 08/2016]
Fig 1: Brake Booster Replacement Components With Torque Specifications [12/2015 - 08/2016] (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Booster Replacement Components With Torque Specification [12/2015 - 08/2016]s (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

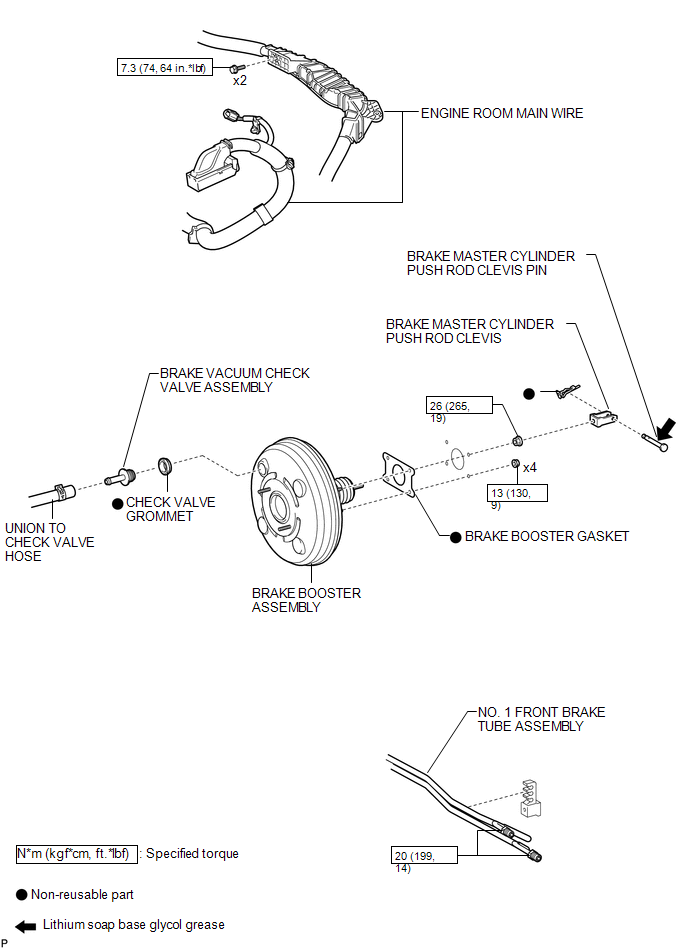

Fig 3: Brake Booster Replacement Components With Torque Specifications [12/2015 - 08/2016] (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Brake Booster Replacement Components With Torque Specifications [12/2015 - 08/2016] (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
