On-Vehicle Inspection [12/2015 - ]: Procedure
- INSPECT HOOD SUB-ASSEMBLY

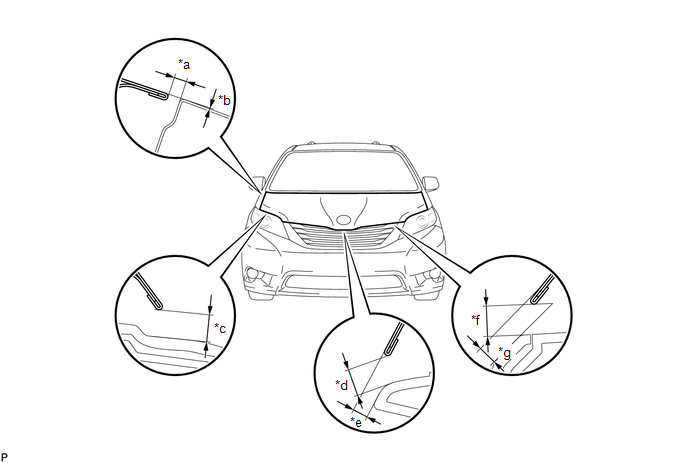

- Check that the clearance measurements are within the standard ranges.
Standard
Area Measurement Area Measurement *a 2.3 to 5.3 mm
(0.091 to 0.209 in.)*e 2.2 to 6.8 mm
(0.087 to 0.268 in.)*b -1.5 to 1.5 mm
(-0.059 to 0.059 in.)*f 6.7 to 11.3 mm
(0.268 to 0.445 in.)*c 6.4 to 10.4 mm
(0.252 to 0.409 in.)*g 3.6 to 8.2 mm
(0.142 to 0.323 in.)*d 6.3 to 10.9 mm
(0.248 to 0.429 in.)- -
- Check that the clearance measurements are within the standard ranges.
