Components [12/2015 - ]

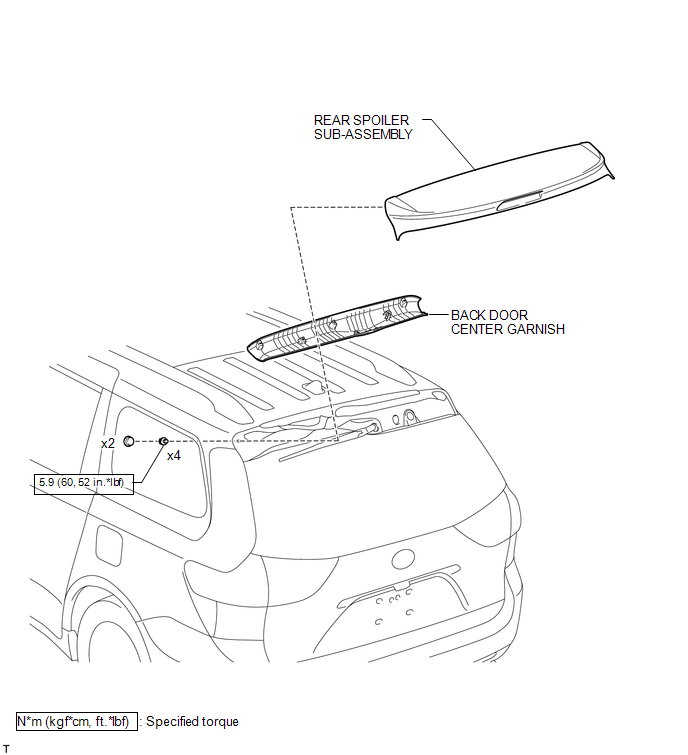

Fig 1: Rear Spoiler Replacement Components With Torque Specifications (1 Of 2)
GTY709565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

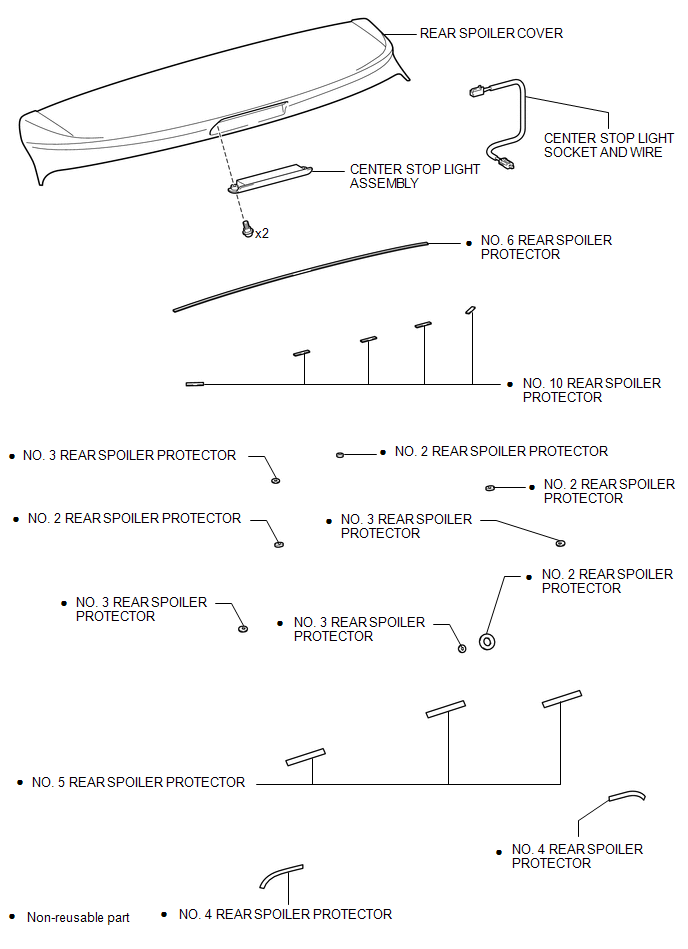

Fig 2: Rear Spoiler Replacement Components (2 Of 2)
GTY895059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
