Parts Location [11/2017 - ]: Illustration

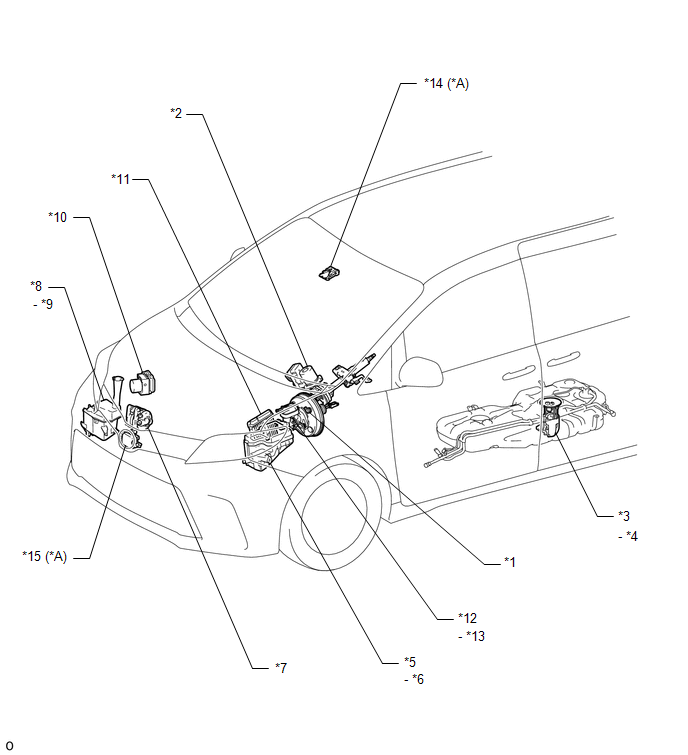

| *A | w/ Toyota Safety Sense P | - | - |
| *1 | VACUUM WARNING SWITCH ASSEMBLY | *2 | STEERING COLUMN ASSEMBLY (POWER STEERING ECU) |
| *3 | FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY | *4 | FUEL SENDER GAUGE ASSEMBLY |
| *5 | ENGINE ROOM RELAY BLOCK | *6 | ECU-B FUSE |
| *7 | GENERATOR ASSEMBLY | *8 | WINDSHIELD WASHER JAR AND TANK ASSEMBLY |
| *9 | WASHER LEVEL WARNING SWITCH ASSEMBLY | *10 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) |
| *11 | ECM | *12 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
| *13 | BRAKE FLUID LEVEL WARNING SWITCH | *14 | FORWARD RECOGNITION CAMERA |
| *15 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |

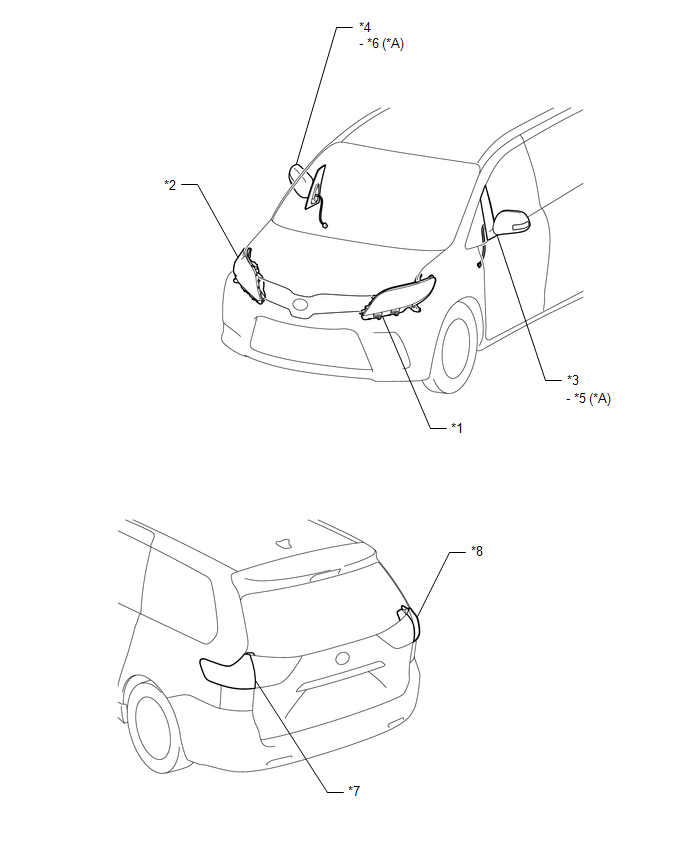

| *A | for Outer Rear View Mirror Type Side Turn Signal Light | - | - |
| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *4 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | REAR COMBINATION LIGHT ASSEMBLY LH | *8 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *A | w/ Rear Power Seat Control System | *B | w/ Blind Spot Monitor System |
| *C | w/ Power Back Door System | - | - |
| *1 | FOLD SEAT CONTROL ECU LH | *2 | FOLD SEAT CONTROL ECU RH |
| *3 | BLIND SPOT MONITOR SENSOR RH | *4 | BLIND SPOT MONITOR SENSOR LH |
| *5 | POWER BACK DOOR ECU | - | - |

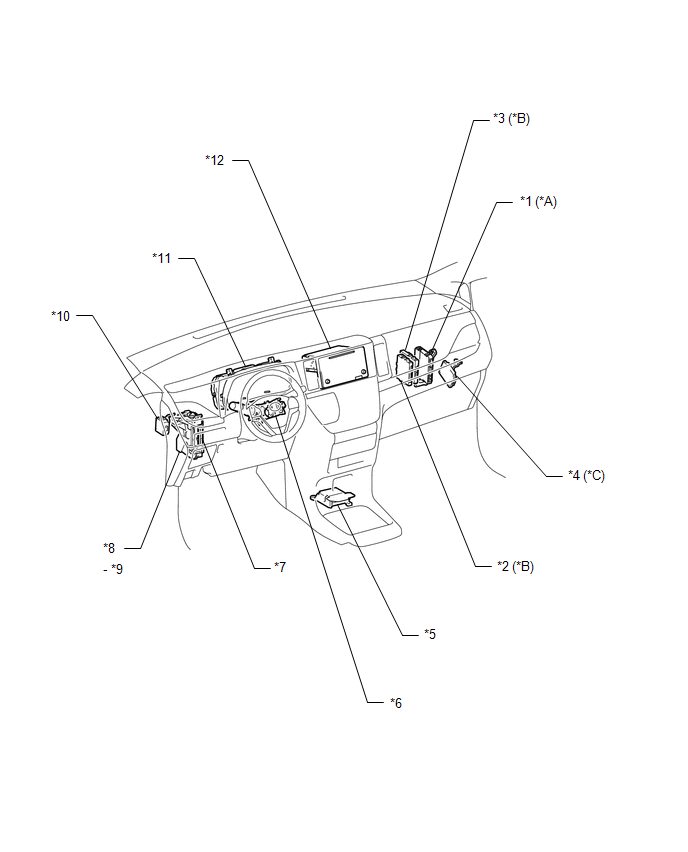

| *A | w/ Safety Connect System | *B | w/ Smart Key System |
| *C | w/ Toyota Safety Sense P | - | - |
| *1 | DCM (TELEMATICS TRANSCEIVER) | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | POWER MANAGEMENT CONTROL ECU | *4 | DRIVING SUPPORT ECU |
| *5 | CENTER AIRBAG SENSOR ASSEMBLY | *6 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *9 | GAUGE NO. 2 FUSE | *10 | TIRE PRESSURE WARNING ECU |
| *11 | COMBINATION METER ASSEMBLY | *12 | RADIO AND DISPLAY RECEIVER ASSEMBLY |

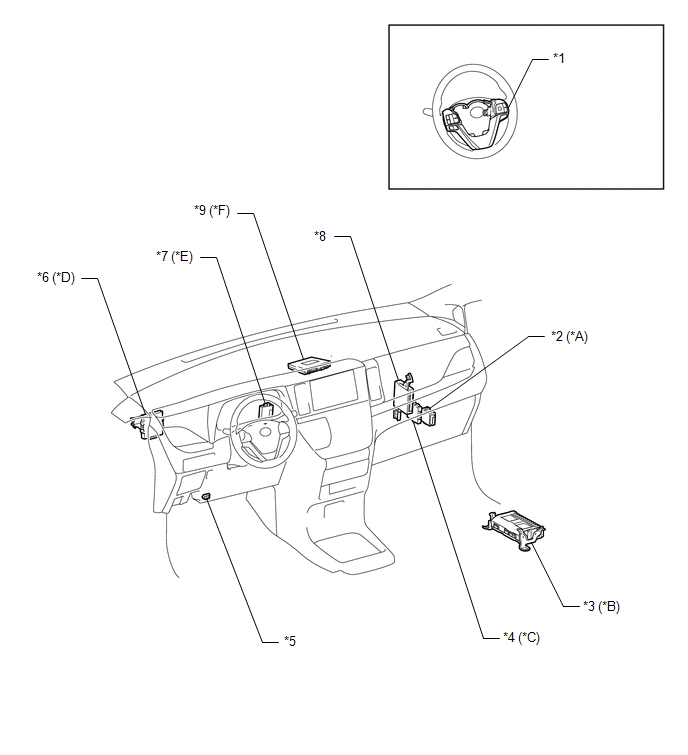

| *A | w/ Rain Sensor | *B | for Separate Type Amplifier System |
| *C | w/ Intuitive Parking Assist System | *D | for AWD |
| *E | w/ Engine Immobiliser System and w/o Smart Key System | *F | w/ Navigation System |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | WINDSHIELD WIPER RELAY ASSEMBLY |
| *3 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *4 | CLEARANCE WARNING ECU |
| *5 | DLC3 | *6 | 4WD CONTROL ECU |
| *7 | TRANSPONDER KEY ECU ASSEMBLY | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | NAVIGATION ECU | - | - |
