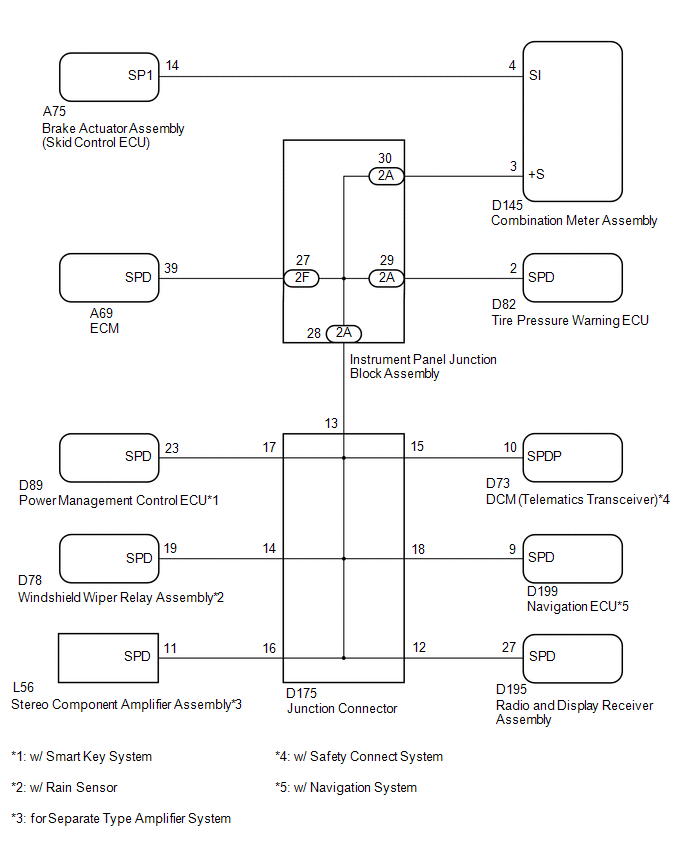

Speed Signal Circuit [11/2017 - ]: Wiring Diagram

GTY758316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
