Entire Combination Meter does not Operate [12/2015 - ]: Procedure

1. Disconnect the combination meter assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   D145-13 (IG+) - Body ground	Ignition switch ON	11 to 14 V
   D145-1 (B) - Body ground	Always	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D145-20 (ES) - Body ground	Always	Below 1 Ω

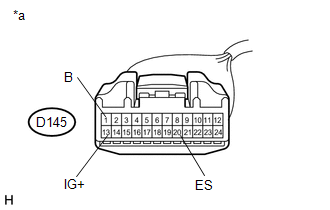

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Combination Meter Assembly)

Result:

OK

REPLACE COMBINATION METER ASSEMBLY

(Refer to REMOVAL [12/2015 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
