Home >> Toyota >> 2019 >> Sequoia SR5, 4WD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension (Service Information) >> Rear Upper Arm >> Components [08/2015 - ]

Components [08/2015 - ]

Fig 1: Rear Upper Arm Replacement Components With Torque Specifications (1 Of 2)
GTY611155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

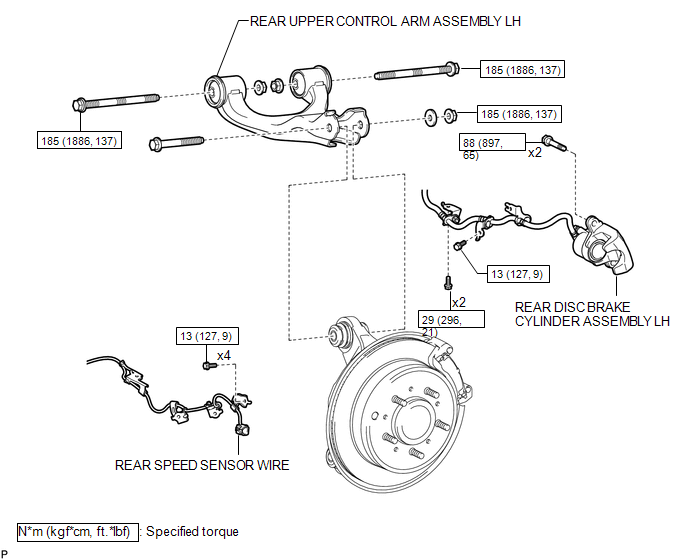

Fig 2: Rear Upper Arm Replacement Components With Torque Specifications (2 Of 2)
GTY245088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
