Components [08/2015 - ]

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications (1 Of 3)
GTY560886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Stabilizer Bar Replacement Components With Torque Specifications (2 Of 3)
GTY599946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

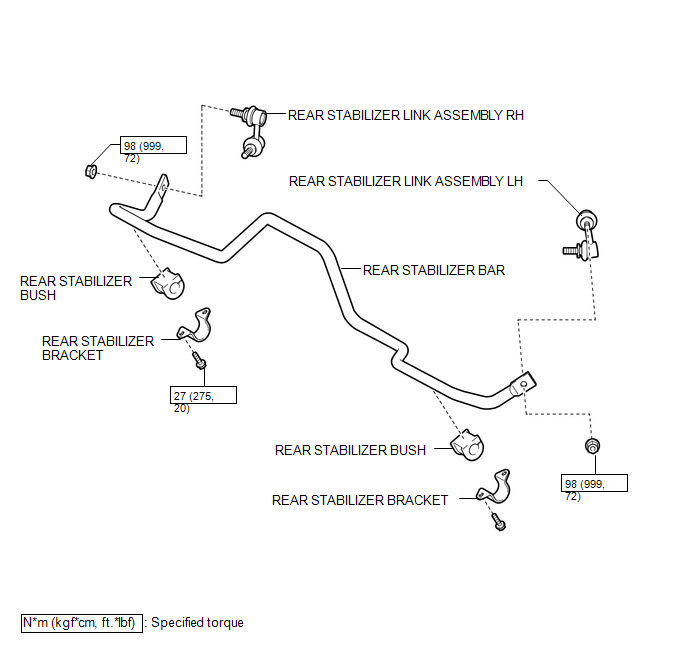

Fig 3: Rear Stabilizer Bar Replacement Components With Torque Specifications (3 Of 3)
GTY309795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
