Home >> Toyota >> 2019 >> Sequoia SR5, 4WD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension (Service Information) >> Rear Pneumatic Cylinder >> Components [08/2015 - ]

Components [08/2015 - ]

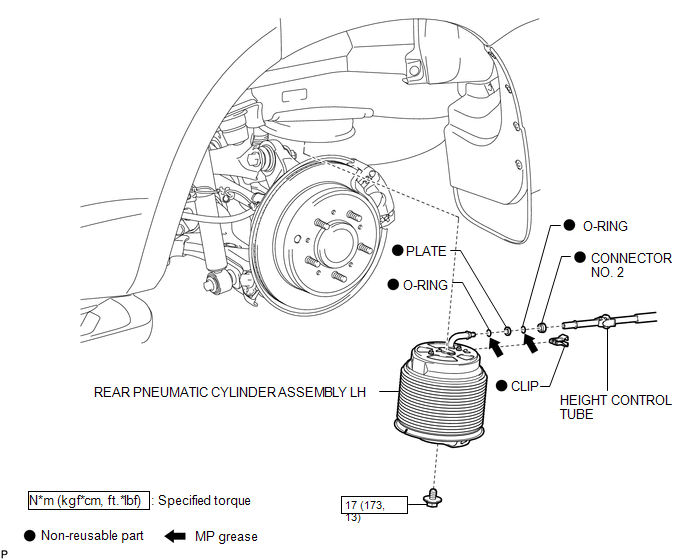

Fig 1: Rear Pneumatic Cylinder Replacement Components With Torque Specifications

GTY609787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
