Removal [08/2015 - ]: Procedure

REMOVE REAR SHOCK ABSORBER ASSEMBLY LH
(Refer to REMOVAL [08/2015 - 08/2018] , or refer to REMOVAL [08/2018 - ] )
LOOSEN REAR UPPER CONTROL ARM ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

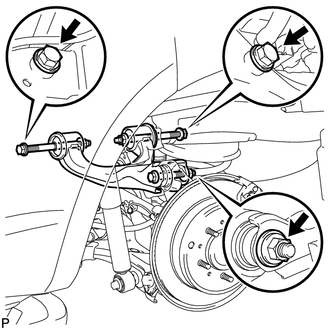

1. Loosen the 3 bolts and 3 nuts.
  NOTE:
  Do not remove the bolts and nuts.

REMOVE REAR COIL SPRING LH

GTY610811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

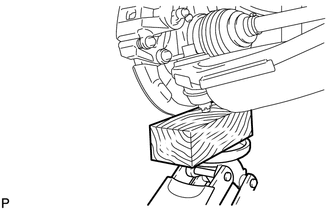

Insert a piece of wood between the jack and the No. 2 lower arm, and raise the No. 2 lower arm.
HINT:

Raise the lower arm to the point just before the vehicle is raised.

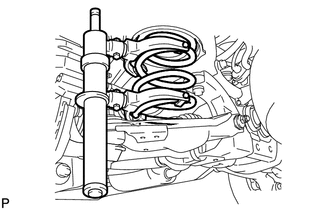

Using SST, compress the coil spring.

SST: 09727-30021

GTY217138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Gently lower the jack and remove the coil spring and insulator.
