Installation [08/2015 - ]: Procedure

1. Using SST, compress the coil spring.
   • SST: 09727-30021

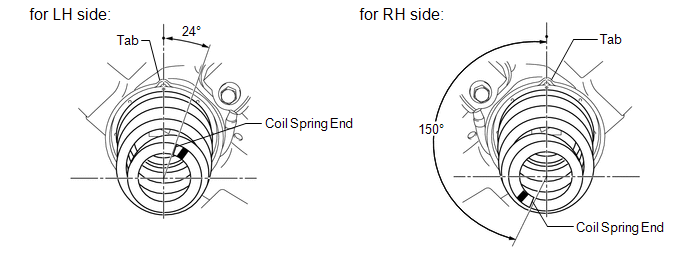

2. Fit the coil spring to the No. 2 lower arm, and jack up the No. 2 lower arm. Install the coil spring as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Confirm that the ID mark on the rear coil spring is visible through the drain hole of the No. 2 lower arm.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the ID mark is not visible, reinstall the coil spring.

4. Remove the SST from the coil spring.

See step :

See  8 [08/2015 - 08/2018]

, or see step 8[08/2018 - ]

Refer to:

INSTALLATION [08/2015 - 08/2018]

INSTALLATION [08/2018 - ]

Refer to

ADJUSTMENT [08/2015 - 08/2018]

ADJUSTMENT [08/2018 - ]
