Home >> Toyota >> 2019 >> Sequoia SR5, 4WD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension (Service Information) >> Rear Coil Spring >> Components [08/2015 - ]

Components [08/2015 - ]

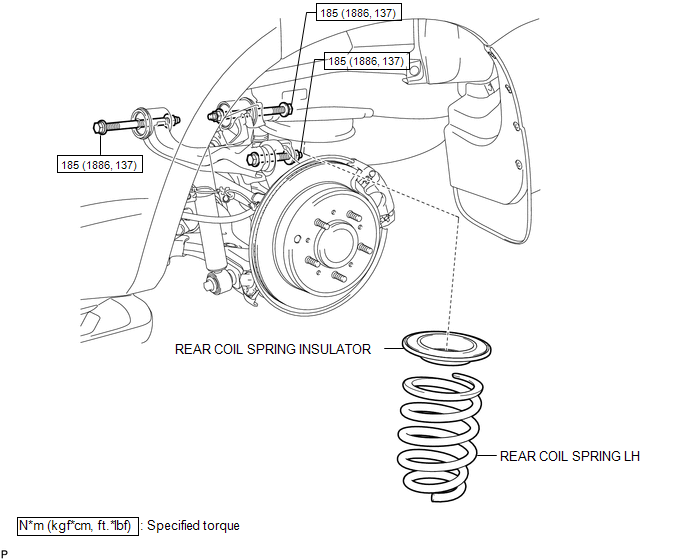

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications

GTY543253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
