Removal [08/2015 - ]: Procedure

  1. REMOVE REAR COIL SPRING LH

    (Refer to REMOVAL [08/2015 - ] )

  2. REMOVE REAR PNEUMATIC CYLINDER ASSEMBLY LH (w/ Air Suspension)

    (Refer to REMOVAL [08/2015 - ] )

  3. REMOVE NO. 2 REAR SUSPENSION ARM ASSEMBLY LH
    GTY607313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the cotter pin and nut.
    2. Using SST, separate the No. 2 rear suspension arm.
      • SST: 09950-40011
        1. 09951-04010
        2. 09953-04020
        3. 09954-04010
        4. 09955-04031
        5. 09958-04011
        6. 09952-04010
      • SST: 09955-04090

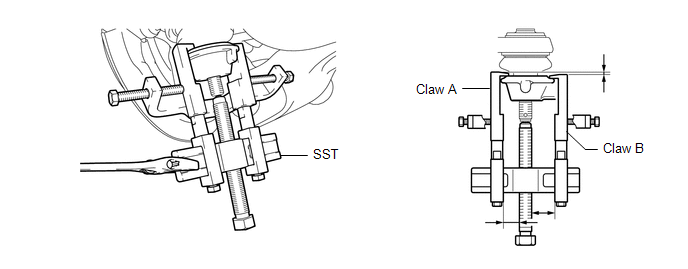

      GTY568331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Claw A 09955-04090

      Claw B 09955-04031

    3. Put matchmarks on the No. 2 rear suspension arm and adjust cam.
      GTY548516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt and nut and the No. 2 rear suspension arm.
