Installation [08/2015 - ]: Procedure

  1. TEMPORARILY INSTALL NO. 2 REAR SUSPENSION ARM ASSEMBLY LH

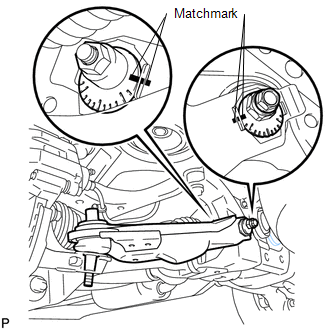

    GTY548516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Align the matchmarks on the No. 2 rear suspension arm and adjust cam.
    2. Temporarily install the No. 2 rear suspension arm with the bolt and nut.
    3. Install the No. 2 rear suspension arm to the rear axle with a new nut.

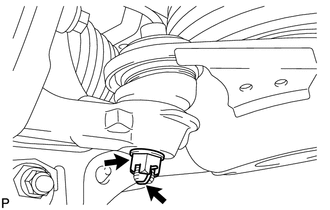

      GTY607313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 130 N.m (1326 kgf/cm, 96 ft.lbf)

    4. Install a new cotter pin.
  2. INSTALL REAR COIL SPRING LH

    (Refer to INSTALLATION [08/2015 - ] )

  3. INSTALL REAR PNEUMATIC CYLINDER ASSEMBLY LH (w/ Air Suspension)

    (Refer to INSTALLATION [08/2015 - ] )

  4. STABILIZE SUSPENSION

    See step:

    See  12 [08/2015 - 08/2018]

    , or see step 11 [08/2018 - ]

  5. TIGHTEN NO. 2 REAR SUSPENSION ARM ASSEMBLY LH
    1. Tighten the bolt and nut.

      Torque: 120 N.m (1224 kgf/cm, 89 ft.lbf)

  6. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    (Refer to ADJUSTMENT [08/2015 - 08/2018] , or refer to ADJUSTMENT [08/2018 - ] )
