REAR LOWER ARM (for No. 2 Arm)
>>
Components [08/2015 - ]
Components [08/2015 - ]

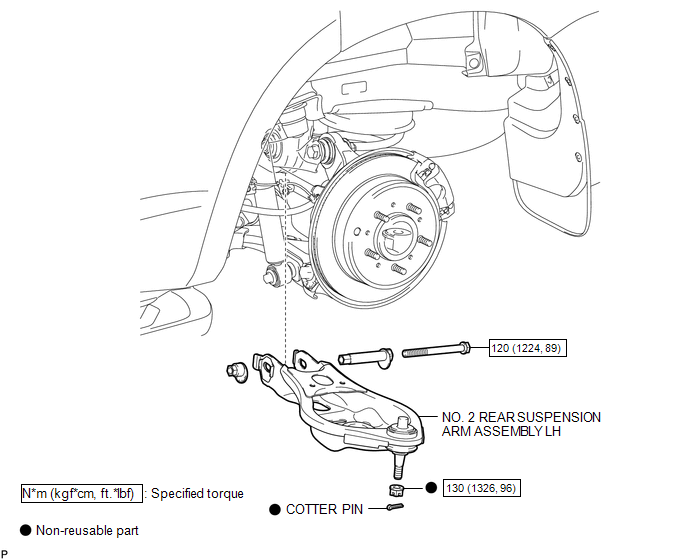

Fig 1: Rear Lower Arm (For No. 2 Arm) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
