Installation [08/2015 - ]: Procedure

TEMPORARILY INSTALL NO. 1 REAR SUSPENSION ARM ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

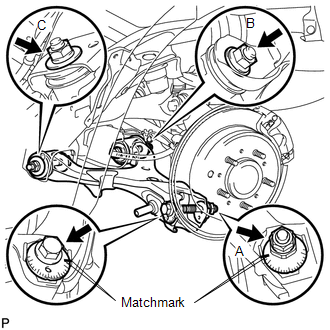

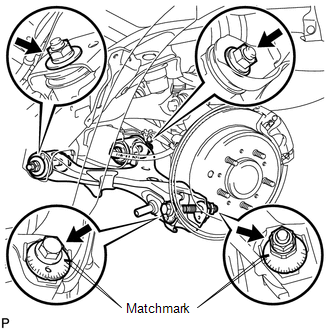

1. Align the matchmarks on the No. 1 rear suspension arm and adjust cam.
2. Temporarily install the No. 1 rear suspension arm with the 3 bolts and 3 nuts.
INSTALL REAR SHOCK ABSORBER ASSEMBLY LH
Refer to:

INSTALLATION [08/2015 - 08/2018]

INSTALLATION [08/2018 - ]
STABILIZE SUSPENSION
See step:

See 12 [08/2015 - 08/2018]

, or see step 11[08/2018 - ]
TIGHTEN NO. 1 REAR SUSPENSION ARM ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Tighten the 3 bolts and 3 nuts.
  - for nut A
  Torque: 250 N.m (2549 kgf/cm, 185 ft.lbf)
  - for nut B
  Torque: 187 N.m (1907 kgf/cm, 137 ft.lbf)
  - for nut C
  Torque: 253 N.m (2580 kgf/cm, 187 ft.lbf)
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
(Refer to ADJUSTMENT [08/2015 - 08/2018] , or refer to ADJUSTMENT [08/2018 - ] )
