Air Suspension System - Diagnostic Codes
>>
Air Suspension System
>>
DTC C1713: Rear Height Control Sensor RH Circuit Malfunction; DTC C1714: Rear Height Control Sensor LH Circuit Malfunction [08/2019 - ]
>>

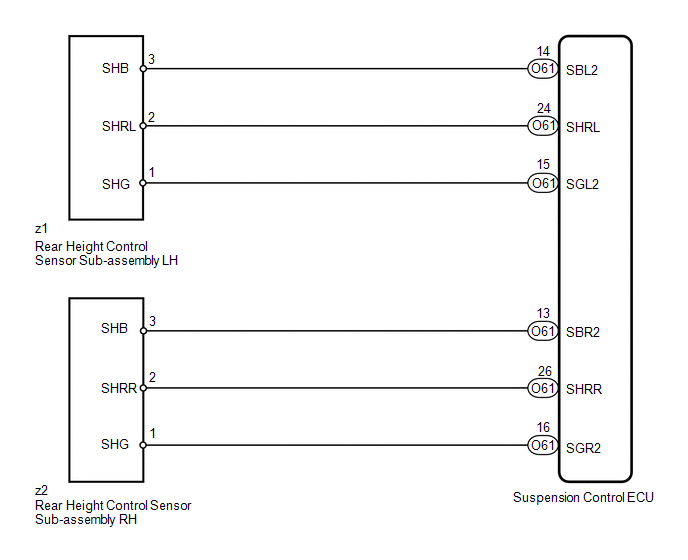

Wiring Diagram
DTC C1713: Rear Height Control Sensor RH Circuit Malfunction; DTC C1714: Rear Height Control Sensor LH Circuit Malfunction [08/2019 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
