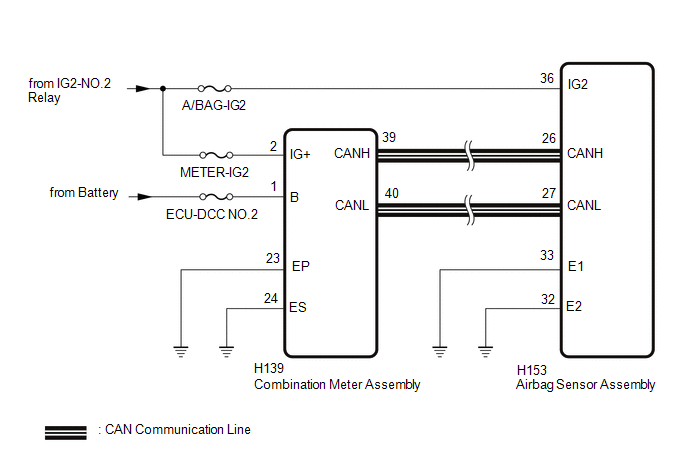

SRS Warning Light does not Come ON [08/2017 - 08/2019]: Wiring Diagram

GTY767831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
