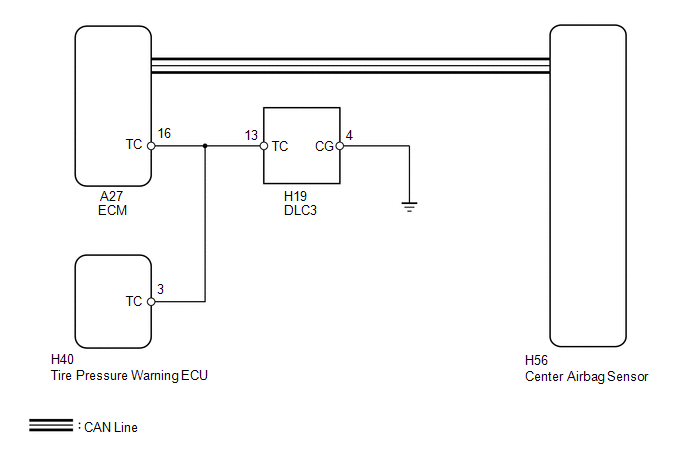

Diagnosis Circuit [08/2015 - 08/2017]: Wiring Diagram

GTY217834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
