Diagnosis Circuit [08/2015 - 08/2017]: Procedure
- CHECK CAN COMMUNICATION SYSTEM
- Check if a CAN communication system DTC is output (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2017]
).RESULT
Result Proceed to DTC is not output A DTC is output B
Result:
B
REPAIR CIRCUITS INDICATED BY OUTPUT DTCS
(Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2015 - 08/2017] )
Result:
A
See step 2
- Check if a CAN communication system DTC is output (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2017]
).

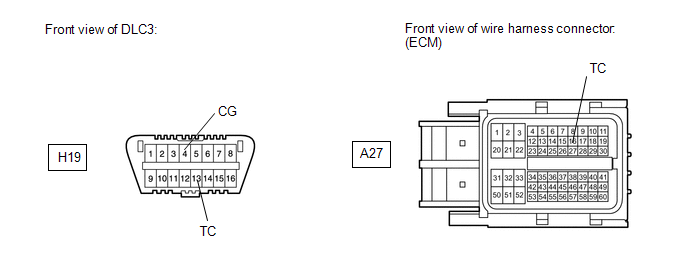

- CHECK HARNESS AND CONNECTOR (DLC3 - ECM)
- Turn the ignition switch off.
- Disconnect the A27 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition H19-13 (TC) - A27-16 (TC) Always Below 1 Ω
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- Turn the ignition switch off.
- CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition H19-4 (CG) - Body ground Always Below 1 Ω
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (TC OF ECM - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A27-16 (TC) - Body ground Always 1 MΩ or higher RESULTResult Proceed to OK (for 3UR-FE) A OK (for 3UR-FBE) B NG C
Result:
A
REPLACE ECM
(Refer to REMOVAL [08/2015 - ] )
Result:
B
REPLACE ECM
(Refer to REMOVAL [08/2015 - 08/2018] )
Result:
C
REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU
- Measure the resistance according to the value(s) in the table below.
