DTC B1835: Short in Curtain Shield Airbag (LH) Squib Circuit; DTC B1836: Open in Curtain Shield Airbag (LH) Squib Circuit; DTC B1837: Short in Curtain Shield Airbag (LH) Squib Circuit (to Ground); DTC B1838: Short in Curtain Shield Airbag (LH) Squib Circuit (to +B) [08/2019 - ]: Procedure
- CHECK CONNECTORS
- Turn the engine switch off.
*1 Curtain Shield Airbag Assembly LH *2 Airbag Sensor Assembly *3 Floor Wire - Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the curtain shield airbag assembly LH and airbag sensor assembly.
OK
The connectors are properly connected.
HINT:
If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.
- Disconnect the connectors from the curtain shield airbag assembly LH and airbag sensor assembly.
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals are not deformed or damaged.
- Check that the floor wire connector (on the curtain shield airbag assembly LH side) is not loose, deformed or damaged.
OK
The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.
- Check that the short springs of the activation prevention mechanism of the floor wire connector are not deformed or damaged.
OK
The short springs are not deformed or damaged.
Result
Proceed to OK NG
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 2
- Turn the engine switch off.
- CHECK CURTAIN SHIELD AIRBAG ASSEMBLY LH
- Connect the connector to the airbag sensor assembly.

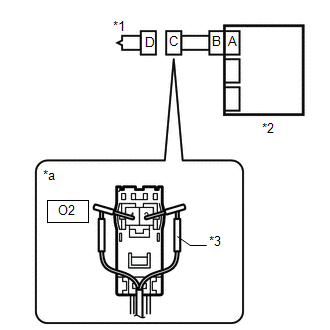

*1 Curtain Shield Airbag Assembly LH *2 Airbag Sensor Assembly *3 SST *a Front view of wire harness connector
(to Curtain Shield Airbag Assembly LH) - Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.WARNING:
Never connect the tester to the curtain shield airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.
NOTE:- Do not forcibly insert SST into the terminals of the connector when connecting SST.
- Insert SST straight into the terminals of the connector.
- SST: 09843-18061
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [08/2019 - ]
- Turn the engine switch off.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [08/2019 - ]
Result
Result Proceed to DTC B1835, B1836, B1837 or B1838 is not output A DTC B1835, B1836, B1837 or B1838 is output B HINT:
Codes other than DTC B1835, B1836, B1837 and B1838 may be output at this time, but they are not related to this check.
- Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Disconnect SST from connector C.
Result:
A
REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY LH. Refer to REMOVAL [08/2019 - ]
Result:
B
See step 3
- Connect the connector to the airbag sensor assembly.
- CHECK FLOOR WIRE
- Disconnect the floor wire from the airbag sensor assembly.

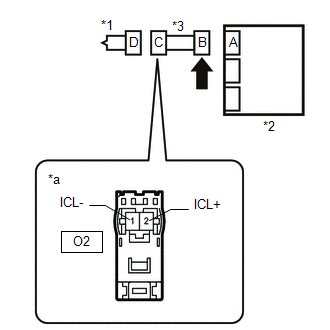

*1 Curtain Shield Airbag Assembly LH *2 Airbag Sensor Assembly *3 Floor Wire *a Front view of wire harness connector
(to Curtain Shield Airbag Assembly LH)Release the activation prevention mechanism - Check for a short to B+ in the circuit.
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition O2-2 (ICL+) - Body ground Engine switch on (IG) Below 1 V O2-1 (ICL-) - Body ground Engine switch on (IG) Below 1 V - Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Check for an open in the circuit.
- Check for a short to ground in the circuit.
- Check for a short in the circuit.
- Release the activation prevention mechanism built into connector B.
Refer to SYSTEM DESCRIPTION [08/2017 - ]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O2-2 (ICL+) - O2-1 (ICL-) Always 1 MΩ or higher - Restore the released activation prevention mechanism of connector B to the original condition.
Result
Proceed to OK NG - Release the activation prevention mechanism built into connector B.
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 4
- Disconnect the floor wire from the airbag sensor assembly.
- CHECK DTC
- Connect the connectors to the curtain shield airbag assembly LH and airbag sensor assembly.
*1 Curtain Shield Airbag Assembly LH *2 Airbag Sensor Assembly - Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [08/2019 - ]
- Turn the engine switch off.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [08/2019 - ]
Result
Result Proceed to DTC B1835, B1836, B1837 or B1838 is not output A DTC B1835, B1836, B1837 or B1838 is output B HINT:
Codes other than DTC B1835, B1836, B1837 and B1838 may be output at this time, but they are not related to this check.
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - ]
Result:
B
REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [08/2019 - ]
- Connect the connectors to the curtain shield airbag assembly LH and airbag sensor assembly.
