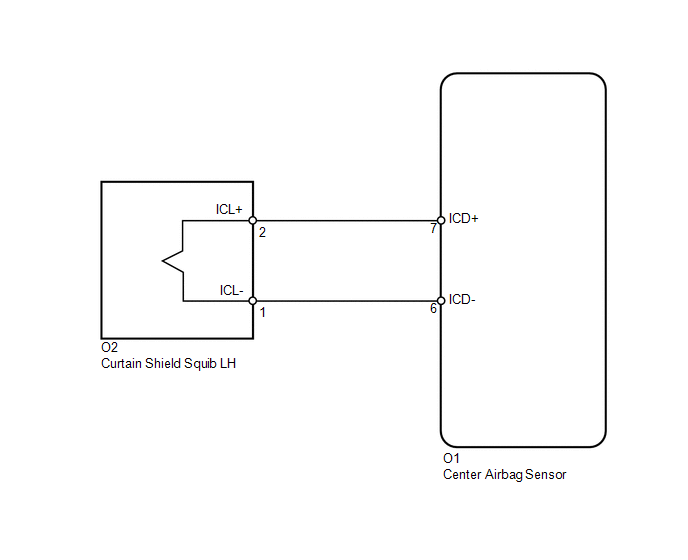

DTC B1830-57: Short in Driver Side Curtain Shield Squib Circuit; DTC B1831-57: Open in Driver Side Curtain Shield Squib Circuit; DTC B1832-57: Short to GND in Driver Side Curtain Shield Squib Circuit; DTC B1833-57: Short to B+ in Driver Side Curtain Shield Squib Circuit [08/2015 - 08/2017]: Wiring Diagram
