DTC B1830-57: Short in Driver Side Curtain Shield Squib Circuit; DTC B1831-57: Open in Driver Side Curtain Shield Squib Circuit; DTC B1832-57: Short to GND in Driver Side Curtain Shield Squib Circuit; DTC B1833-57: Short to B+ in Driver Side Curtain Shield Squib Circuit [08/2015 - 08/2017]: Procedure
- CHECK CONNECTOR
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

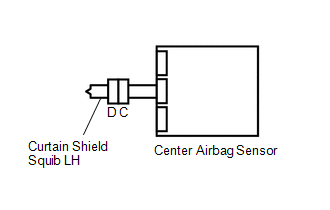

- Check that the connector is properly connected to the curtain shield airbag LH.
OK
The connector is properly connected.
HINT:
If the connector is not connected securely, reconnect the connector and proceed to the next inspection.
- Disconnect the connector from the curtain shield airbag LH.
- Check that the floor wire connector (on the curtain shield airbag LH side) is not damaged.
OK
The lock button is not disengaged, or the claw of the lock is not deformed or damaged.
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 2
- CHECK CURTAIN SHIELD AIRBAG LH (CURTAIN SHIELD SQUIB LH)

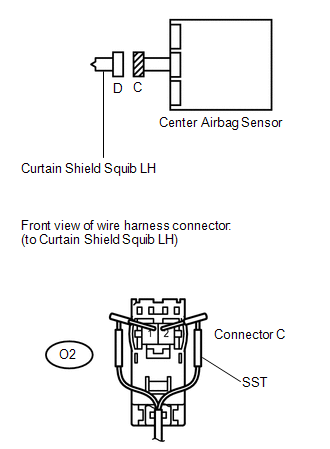

- Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.WARNING:
Never connect the tester to the curtain shield airbag LH (curtain shield squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.
NOTE:- Do not forcibly insert SST into the terminals of the connector when connecting SST.
- Insert SST straight into the terminals of the connector.
- SST: 09843-18061
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2017] ).
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2017]
).
OK
DTC B1830, B1831, B1832, B1833 or 57 is not output.
HINT:
Codes other than DTC B1830, B1831, B1832, B1833 and 57 may be output at this time, but they are not related to this check.
Result:
OK
REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY LH
(Refer to REMOVAL [08/2015 - 08/2019] )
Result:
NG
See step 3
- Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.
- CHECK CONNECTOR
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Disconnect SST from connector C.
- Check that the connector is properly connected to the center airbag sensor assembly.
OK
The connector is properly connected.
HINT:
If the connector is not connected securely, reconnect the connector and proceed to the next inspection.
- Disconnect the connector from the center airbag sensor assembly.
- Check that the terminal of the connector is not damaged.
OK
The terminal is not deformed or damaged.
- Check that the short spring for the floor wire connector with the activation prevention mechanism is not deformed or damaged.
OK
The short spring is not deformed or damaged.
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 4

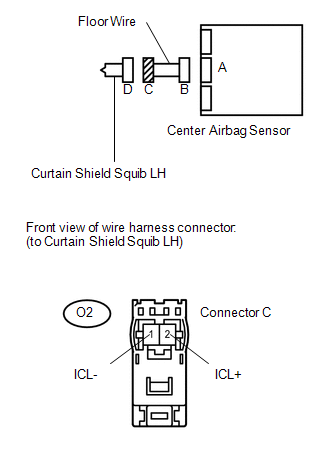

- CHECK FLOOR WIRE (CURTAIN SHIELD SQUIB LH CIRCUIT)
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition O2-2 (ICL+) - Body ground Ignition switch ON Below 1 V O2-1 (ICL-) - Body ground Ignition switch ON Below 1 V - Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O2-2 (ICL+) - O2-1 (ICL-) Always Below 1 Ω - Release the activation prevention mechanism built into connector B (Refer to DIAGNOSIS SYSTEM [08/2015 - 08/2017] ).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O2-2 (ICL+) - O2-1 (ICL-) Always 1 MΩ or higher O2-2 (ICL+) - Body ground Always 1 MΩ or higher O2-1 (ICL-) - Body ground Always 1 MΩ or higher
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 5
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- CHECK CENTER AIRBAG SENSOR
- Restore the released activation prevention mechanism of connector B to the original condition.
- Connect the connectors to the curtain shield airbag LH and the center airbag sensor.
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2017] ).
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2017]
).
OK
DTC B1830, B1831, B1832, B1833 or 57 is not output.
HINT:
Codes other than DTC B1830, B1831, B1832, B1833 and 57 may be output at this time, but they are not related to this check.
Result:
OK
USE SIMULATION METHOD TO CHECK
(Refer to DIAGNOSIS SYSTEM [08/2015 - 08/2017] )
Result:
NG
REPLACE CENTER AIRBAG SENSOR ASSEMBLY
(Refer to REMOVAL [08/2015 - 08/2017] )
- Restore the released activation prevention mechanism of connector B to the original condition.
