DTC B1820: Short in Side Squib (RH) Circuit; DTC B1821: Open in Side Squib (RH) Circuit; DTC B1822: Short in Side Squib (RH) Circuit (to Ground); DTC B1823: Short in Side Squib (RH) Circuit (to +B) [08/2017 - 08/2019]: Procedure
- CHECK CONNECTORS
- Turn the ignition switch off.
*1 Front Seat Airbag Assembly RH *2 Airbag Sensor Assembly *3 No. 2 Floor Wire - Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the front seat airbag assembly RH and airbag sensor assembly.
OK
The connectors are properly connected.
HINT:
If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.
- Disconnect the connectors from the front seat airbag assembly RH and airbag sensor assembly.
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals are not deformed or damaged.
- Check that the short springs of the activation prevention mechanism of the No. 2 floor wire connector are not deformed or damaged.
OK
The short springs are not deformed or damaged.
Result
Proceed to OK NG
Result:
NG
REPLACE NO. 2 FLOOR WIRE
Result:
OK
See step 2
- Turn the ignition switch off.
- CHECK FRONT SEAT AIRBAG ASSEMBLY RH
- Connect the connector to the airbag sensor assembly.

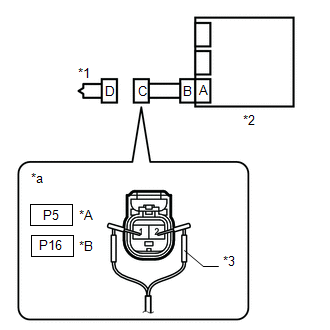

*A w/ Power Seat *B w/o Power Seat *1 Front Seat Airbag Assembly RH *2 Airbag Sensor Assembly *3 SST *a Front view of wire harness connector
(to Front Seat Airbag Assembly RH) - Connect the red wire side of SST (resistance: 2.1 Ω) to connector C.WARNING:
Never connect the tester to the front seat airbag assembly RH for measurement, as this may lead to a serious injury due to airbag deployment.
NOTE:- Do not forcibly insert SST into the terminals of the connector when connecting SST.
- Insert SST straight into the terminals of the connector.
- SST: 09843-18061
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs.
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]
Result
Result Proceed to DTC B1820, B1821, B1822 or B1823 is not output. A DTC B1820, B1821, B1822 or B1823 is output. B HINT:
Codes other than DTC B1820, B1821, B1822 and B1823 may be output at this time, but they are not related to this check.
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Disconnect SST from connector C.
Result:
A
REPLACE FRONT SEAT AIRBAG ASSEMBLY RH
for Manual Seat Type:
Refer to REMOVAL [08/2017 - 08/2019]
for Power Seat Type:
Refer to REMOVAL [08/2015 - 08/2019]
Result:
B
See step 3
- Connect the connector to the airbag sensor assembly.
- CHECK NO. 2 FLOOR WIRE
- Disconnect the No. 2 floor wire from the airbag sensor assembly.

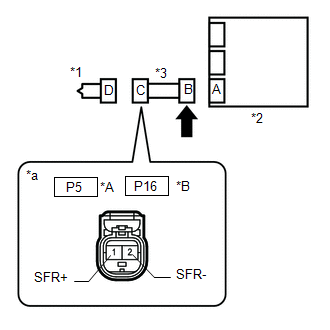

*A w/ Power Seat *B w/o Power Seat *1 Front Seat Airbag Assembly RH *2 Airbag Sensor Assembly *3 No. 2 Floor Wire *a Front view of wire harness connector
(to Front Seat Airbag Assembly RH)Release the activation prevention mechanism - Check for a short to B+ in the circuit.
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
W/ POWER SEATTester Connection Switch Condition Specified Condition P5-1 (SFR+) - Body ground Ignition switch ON Below 1 V P5-2 (SFR-) - Body ground Ignition switch ON Below 1 V W/O POWER SEATTester Connection Switch Condition Specified Condition P16-1 (SFR+) - Body ground Ignition switch ON Below 1 V P16-2 (SFR-) - Body ground Ignition switch ON Below 1 V - Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Check for an open in the circuit.
- Check for a short to ground in the circuit.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
W/ POWER SEATTester Connection Condition Specified Condition P5-1 (SFR+) - Body ground Always 1 MΩ or higher P5-2 (SFR-) - Body ground Always 1 MΩ or higher W/O POWER SEATTester Connection Condition Specified Condition P16-1 (SFR+) - Body ground Always 1 MΩ or higher P16-2 (SFR-) - Body ground Always 1 MΩ or higher
- Measure the resistance according to the value(s) in the table below.
- Check for a short in the circuit.
Refer to SYSTEM DESCRIPTION [08/2017 - ]
- Release the activation prevention mechanism built into connector B.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
W/ POWER SEATTester Connection Condition Specified Condition P5-1 (SFR+) - P5-2 (SFR-) Always 1 MΩ or higher W/O POWER SEATTester Connection Condition Specified Condition P16-1 (SFR+) - P16-2 (SFR-) Always 1 MΩ or higher - Restore the released activation prevention mechanism of connector B to the original condition.
Result
Proceed to OK NG
Result:
NG
REPLACE NO. 2 FLOOR WIRE
Result:
OK
See step 4
- Disconnect the No. 2 floor wire from the airbag sensor assembly.
- CHECK DTC
- Connect the connectors to the front seat airbag assembly RH and airbag sensor assembly.
*1 Front Seat Airbag Assembly RH *2 Airbag Sensor Assembly - Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs.
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]
Result
Result Proceed to DTC B1820, B1821, B1822 or B1823 is not output. A DTC B1820, B1821, B1822 or B1823 is output. B HINT:
Codes other than DTC B1820, B1821, B1822 and B1823 may be output at this time, but they are not related to this check.
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2017 - 08/2018] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2018 - 08/2019]
Result:
B
REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [08/2017 - 08/2019]
- Connect the connectors to the front seat airbag assembly RH and airbag sensor assembly.
