Supplemental Restraint System - Diagnostic Codes (2 Of 3)
>>
Airbag System
>>
DTC B1690-15: Driver Side Door Side Airbag Sensor Malfunction; DTC B1695-16: Passenger Side Door Side Airbag Sensor Malfunction [08/2015 - 08/2017]
>>

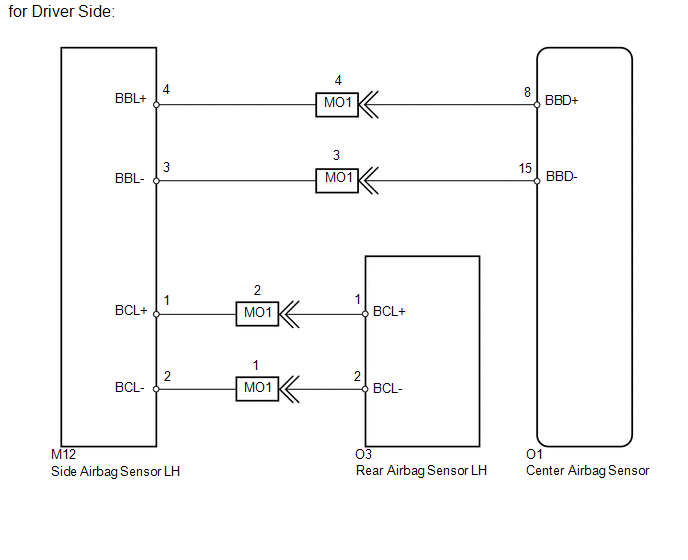

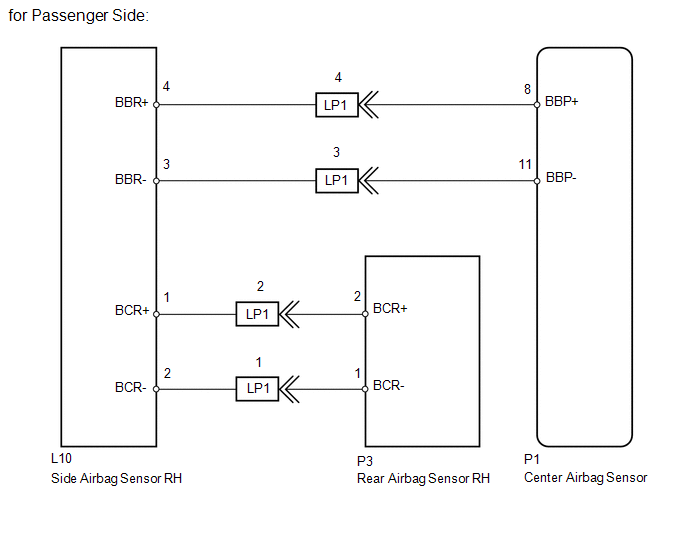

Wiring Diagram
DTC B1690-15: Driver Side Door Side Airbag Sensor Malfunction; DTC B1695-16: Passenger Side Door Side Airbag Sensor Malfunction [08/2015 - 08/2017]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
