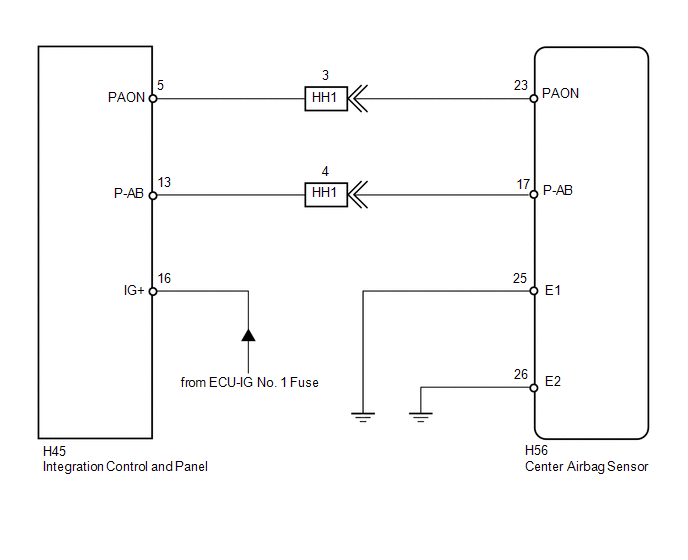

DTC B1660-43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [08/2015 - 08/2017]: Wiring Diagram

GTY222781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
