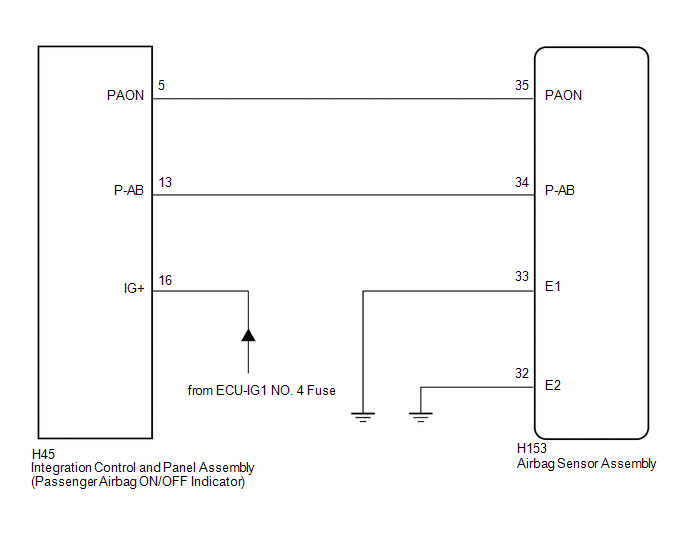

DTC B1660: P Seat Airbag Active Mode Indicator [08/2019 - ]: Wiring Diagram

GTY881876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
