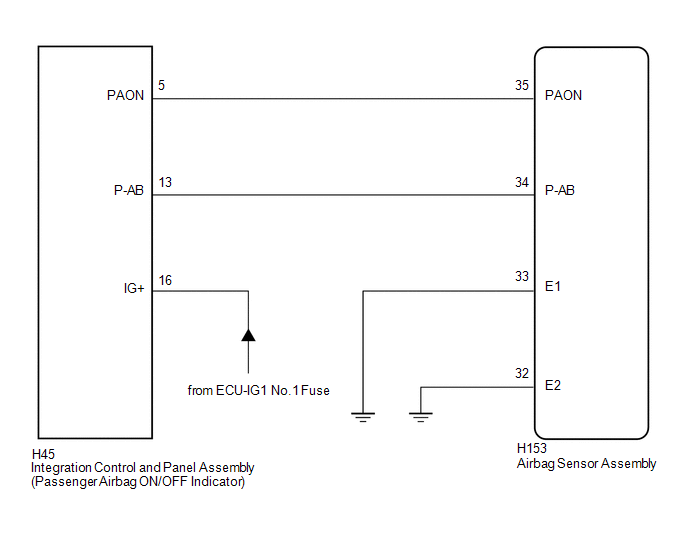

DTC B1660: P Seat Airbag Active Mode Indicator [08/2017 - 08/2019]: Wiring Diagram

GTY753585

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
