DTC B1660: P Seat Airbag Active Mode Indicator [08/2017 - 08/2019]: Procedure

  1. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CONDITION
    1. Turn the ignition switch to ON.
    2. Check the passenger airbag ON/OFF indicator operation.

      HINT:

      Refer to the normal condition of the passenger airbag ON/OFF indicator.

      Refer to

      HOW TO PROCEED WITH TROUBLESHOOTING [08/2017 - 08/2018]

      HOW TO PROCEED WITH TROUBLESHOOTING [08/2018 - 08/2019]

      Result

      Result Proceed to
      ON/OFF indicator illumination is always on. A
      ON/OFF indicator illumination is always off. B

    Result:

    B

    See step  7

    Result:

    A

    See step  2

  2. CHECK CONNECTION OF CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the airbag sensor assembly and integration control and panel assembly.

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  3

  3. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag sensor assembly and integration control and panel assembly.
      GTY747083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Integration Control and Panel Assembly
      *2 Airbag Sensor Assembly
      *3 Harness and Connector
    2. Check that the connectors (on the airbag sensor assembly side and integration control and panel assembly side) are not damaged.

      OK

      The connectors are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HARNESS AND CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
    1. Connect the connector to the integration control and panel assembly.
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the ignition switch to ON.
    4. Check the passenger airbag ON/OFF indicator operation.

      OK

      The passenger airbag ON/OFF indicator does not come on.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  6

    Result:

    OK

    See step  5

  5. CHECK DTC
    1. Connect the connectors to the airbag sensor assembly.
      GTY752413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Integration Control and Panel Assembly
      *2 Airbag Sensor Assembly
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the ignition switch to ON, and wait for at least 60 seconds.
    4. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

    5. Turn the ignition switch off.
    6. Turn the ignition switch to ON, and wait for at least 60 seconds.
    7. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

      Result

      Result Proceed to
      DTC B1660 is not output A
      DTC B1660 is output B

      HINT:

      Codes other than DTC B1660 may be output at this time, but they are not related to this check.

    Result:

    A

    USE SIMULATION METHOD TO CHECK.  Refer to

    HOW TO PROCEED WITH TROUBLESHOOTING [08/2017 - 08/2018]

    HOW TO PROCEED WITH TROUBLESHOOTING [08/2018 - 08/2019]

    Result:

    B

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [08/2017 - 08/2019]

  6. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT
    1. Disconnect the connector from the airbag sensor assembly and integration control and panel assembly.

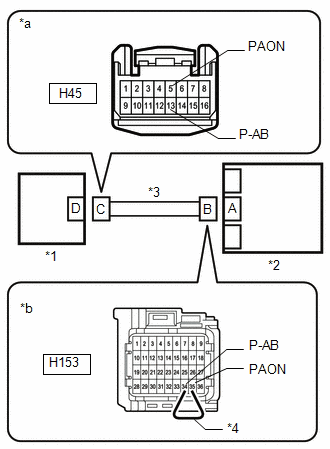

      GTY741944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Integration Control and Panel Assembly (Passenger Airbag ON/OFF Indicator)
      *2 Airbag Sensor Assembly
      *3 Harness and Connector
      *4 Service Wire
      *a Front view of wire harness connector
      (to Integration Control and Panel Assembly [Passenger Airbag ON/OFF Indicator])
      *b Front view of wire harness connector
      (to Airbag Sensor Assembly)
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the ignition switch to ON.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      H45-13 (P-AB) - Body ground Ignition switch ON Below 1 V
      H45-5 (PAON) - Body ground Ignition switch ON Below 1 V
    5. Turn the ignition switch off.
    6. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    7. Using a service wire, connect terminals 35 (PAON) and 34 (P-AB) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H45-13 (P-AB) - H45-5 (PAON) Always Below 1 Ω
    9. Disconnect the service wire from connector B.
    10. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H45-13 (P-AB) - H45-5 (PAON) Always 1 MΩ or higher
      H45-13 (P-AB) - Body ground Always 1 MΩ or higher
      H45-5 (PAON) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

      Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

    Result:

    OK

    REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY. Refer to  REMOVAL [08/2017 - 08/2019]

    Result:

    NG

    REPLACE HARNESS AND CONNECTOR

  7. CHECK CONNECTION OF CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the airbag sensor assembly and integration control and panel assembly.

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  8

  8. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag sensor assembly and integration control and panel assembly.
      GTY747083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Integration Control and Panel Assembly
      *2 Airbag Sensor Assembly
      *3 Harness and Connector
    2. Check that the connectors (on the airbag sensor assembly side and integration control and panel assembly side) are not damaged.

      OK

      The connectors are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HARNESS AND CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
      GTY741944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Integration Control and Panel Assembly (Passenger Airbag ON/OFF Indicator)
      *2 Airbag Sensor Assembly
      *3 Instrument Panel Wire
      *4 Service Wire
      *a Front view of wire harness connector
      (to Integration Control and Panel Assembly [Passenger Airbag ON/OFF Indicator])
      *b Front view of wire harness connector
      (to Airbag Sensor Assembly)
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      H45-13 (P-AB) - Body ground Ignition switch ON Below 1 V
      H45-5 (PAON) - Body ground Ignition switch ON Below 1 V
    4. Turn the ignition switch off.
    5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    6. Using a service wire, connect terminals 35 (PAON) and 34 (P-AB) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H45-13 (P-AB) - H45-5 (PAON) Always Below 1 Ω
    8. Disconnect the service wire from connector B.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H45-13 (P-AB) - H45-5 (PAON) Always 1 MΩ or higher
      H45-13 (P-AB) - Body ground Always 1 MΩ or higher
      H45-5 (PAON) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HARNESS AND CONNECTOR

    Result:

    OK

    See step  10

  10. CHECK PASSENGER AIRBAG ON/OFF INDICATOR (SOURCE VOLTAGE)
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
      GTY746174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Integration Control and Panel Assembly [Passenger Airbag ON/OFF Indicator])
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      H45-16 (IG+) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS AND CONNECTOR

    Result:

    OK

    See step  11

  11. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
    1. Turn the ignition switch off.
      GTY752493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Connect the connector to the integration control and panel assembly.
    4. Using a service wire, connect terminal 35 (PAON) and body ground.
    5. Using a service wire, connect terminal 34 (P-AB) and body ground.
    6. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    7. Turn the ignition switch to ON.
    8. Check the indicator according to the table below.

      OK

      Tester Connection Switch Condition Passenger Airbag ON/OFF Indicator
      H153-35 (PAON) - Body ground Ignition switch ON "ON" comes on
      H153-34 (P-AB) - Body ground Ignition switch ON "OFF" comes on
    9. Disconnect the service wire from airbag sensor assembly.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY. Refer to  REMOVAL [08/2017 - 08/2019]

    Result:

    OK

    See step  12

  12. CHECK DTC
    1. Turn the ignition switch off.
      GTY752413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Integration Control and Panel Assembly
      *2 Airbag Sensor Assembly
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Connect the connectors to the airbag sensor assembly.
    4. Connect the cable to the negative (-) battery terminal and wait for at least 2 seconds.
    5. Turn the ignition switch to ON, and wait for at least 60 seconds.
    6. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

    7. Turn the ignition switch off.
    8. Turn the ignition switch to ON, and wait for at least 60 seconds.
    9. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

      Result

      Result Proceed to
      DTC B1660 is not output A
      DTC B1660 is output B

      HINT:

      Codes other than DTC B1660 may be output at this time, but they are not related to this check.

    Result:

    A

    USE SIMULATION METHOD TO CHECK.  Refer to

    HOW TO PROCEED WITH TROUBLESHOOTING [08/2017 - 08/2018]

    HOW TO PROCEED WITH TROUBLESHOOTING [08/2018 - 08/2019]

    Result:

    B

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [08/2017 - 08/2019]
