DTC B1656: Seat Belt Buckle Switch (LH) [08/2019 - ]: Procedure

  1. CHECK CONNECTION OF CONNECTORS
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the airbag sensor assembly and front seat inner belt assembly LH.

      OK

      Connectors are properly connected.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  2

  2. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag sensor assembly and front seat inner belt assembly LH.
      GTY750511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Inner Belt Assembly LH
      *2 Airbag Sensor Assembly
      *3 Floor Wire
    2. Check that the connectors (on the airbag sensor assembly side and front seat inner belt assembly LH side) are not damaged.

      OK

      Connectors are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  3

  3. CHECK FLOOR WIRE
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

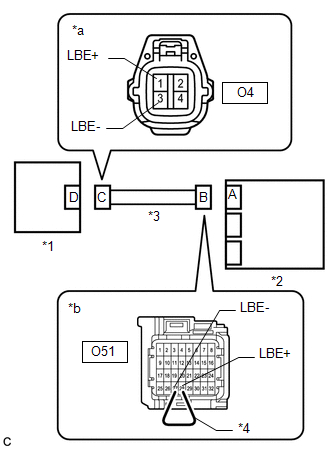

      GTY746839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Inner Belt Assembly LH
      *2 Airbag Sensor Assembly
      *3 Floor Wire
      *4 Service Wire
      *a Front view of wire harness connector
      (to Front Seat Inner Belt Assembly LH)
      *b Front view of wire harness connector
      (to Airbag Sensor Assembly)
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      O4-1 (LBE+) - Body ground Engine switch on (IG) Below 1 V
      O4-3 (LBE-) - Body ground Engine switch on (IG) Below 1 V
    4. Turn the engine switch off.
    5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    6. Using a service wire, connect terminals 28 (LBE+) and 27 (LBE-) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-1 (LBE+) - O4-3 (LBE-) Always Below 1 Ω
    8. Disconnect the service wire from connector B.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O4-1 (LBE+) - O4-3 (LBE-) Always 1 MΩ or higher
      O4-1 (LBE+) - Body ground Always 1 MΩ or higher
      O4-3 (LBE-) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  4

  4. CHECK DTC
    1. Connect the connectors to the airbag sensor assembly and front seat inner belt assembly LH.
      GTY741945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Inner Belt Assembly LH
      *2 Airbag Sensor Assembly
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the engine switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [08/2019 - ]

    5. Turn the engine switch off.
    6. Turn the engine switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2019 - ]

      Result

      Result Proceed to
      DTC B1656 is not output A
      DTC B1656 is output B

      HINT:

      Codes other than DTC B1656 may be output at this time, but they are not related to this check.

    Result:

    B

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - ]

    Result:

    A

    See step  5

  5. REPLACE FRONT SEAT INNER BELT ASSEMBLY LH
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Replace the front seat inner belt assembly LH.

      Refer to REMOVAL [08/2019 - ]

      HINT:

      Perform the inspection using parts from a normal vehicle if possible.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  6

  6. CHECK DTC
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
      GTY741946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Seat Inner Belt Assembly LH
      *2 Airbag Sensor Assembly
    2. Turn the engine switch on (IG), and wait for at least 60 seconds.
    3. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [08/2019 - ]

    4. Turn the engine switch off.
    5. Turn the engine switch on (IG), and wait for at least 60 seconds.
    6. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2019 - ]

      Result

      Result Proceed to
      DTC B1656 is not output A
      DTC B1656 is output B

      HINT:

      Codes other than DTC B1656 may be output at this time, but they are not related to this check.

    Result:

    A

    END (FRONT SEAT INNER BELT ASSEMBLY LH WAS DEFECTIVE)

    Result:

    B

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [08/2019 - ]
