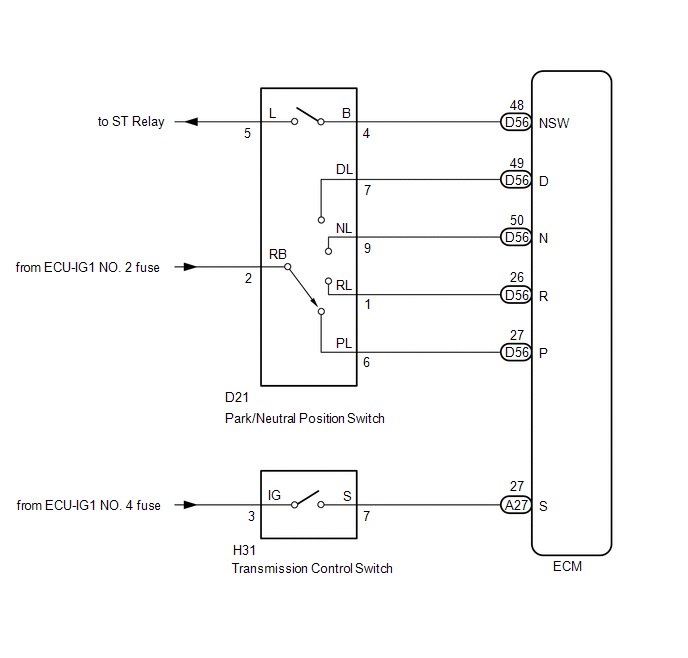

DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) [08/2019 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY866245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
