Installation [08/2015 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

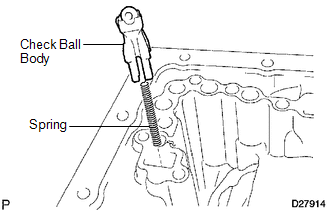

1. Install the spring and check ball body.

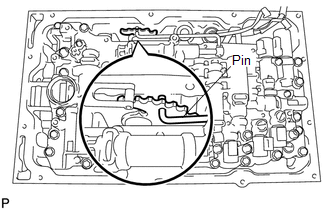

2. Insert the pin of the manual valve into the hole of the manual valve lever.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

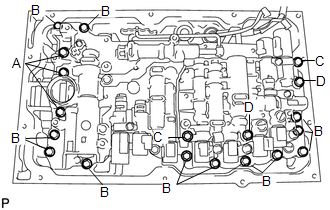

3. Install the 19 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

   HINT:

   Each bolt length is indicated below.

   36 mm (1.42 in.) for bolt A

   25 mm (0.984 in.) for bolt B

   45 mm (1.77 in.) for bolt C

   50 mm (1.97 in.) for bolt D

4. Install the detent spring and detent spring cover with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

See step  2

See step  3

See step  4

See step  17

1. Adjust automatic transmission fluid. Refer to:

   ADJUSTMENT [08/2015 - 08/2017]

   ADJUSTMENT [08/2017 - 08/2019]

   ADJUSTMENT [08/2019 - ]
