Disassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT SOLENOID VALVE SL2
    1. Remove the bolt, lock plate and 2 straight pins.
      GTY611188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve.
  2. REMOVE SHIFT SOLENOID VALVE SLU
    GTY574903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the bolt, lock plate and 2 straight pins.

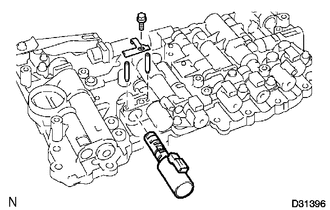

      GTY574893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve.
  4. REMOVE SHIFT SOLENOID VALVE SL1

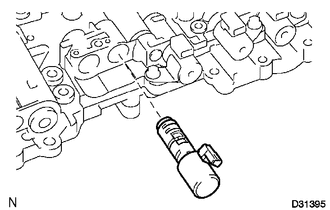

    GTY574894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT SOLENOID VALVE SR
    1. Remove the bolt and shift solenoid valve.

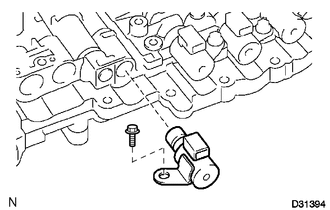

      GTY456401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SHIFT SOLENOID VALVE S1

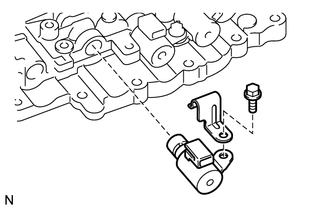

    GTY608020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt, valve body wire harness clamp and shift solenoid valve.
  7. REMOVE SHIFT SOLENOID VALVE S4
    1. Remove the bolt and shift solenoid valve.
      GTY574895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SHIFT SOLENOID VALVE S2
    GTY610928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SHIFT SOLENOID VALVE S3
    1. Remove the bolt and shift solenoid valve.
      GTY574896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
