Installation [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL TRANSMISSION WIRE

Install the 2 transmission wires with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 5.4 N.m (55 kgf/cm, 48 in.*lbf)

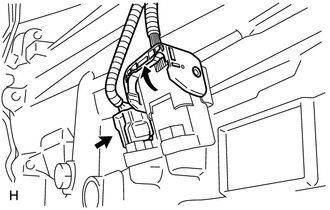

Connect the 2 transmission wire connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Push up the lever until the claw of the transmission wire connector makes a connection sound.

CONNECT TRANSMISSION WIRE

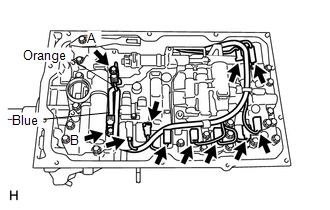

Connect the 9 connectors to the solenoid valves.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Coat the 2 new O-rings with ATF, and install them to the 2 temperature sensors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL VALVE BODY OIL STRAINER ASSEMBLY

Install the oil strainer with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

Install the 4 transmission oil cleaner magnets to the oil pan.

Install a new gasket and the oil pan with the 12 bolts.

Torque: 7.4 N.m (75 kgf/cm, 65 in.*lbf)

NOTE:

Make sure that there is no oil or foreign matter on the gasket seal surface and oil pan contact surface.
Install the gasket so that there is no slack in the gasket, and make sure the seal surface's entire circumference is level.
Make sure that the 9 gasket drop prevention protrusions are set on the oil pan.
When tightening the oil pan, make sure that the gasket is not pinched between the gasket tightening area's sleeve and the transmission's seal surface.
