Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT CONSOLE BOX ASSEMBLY
    1. Remove the front console box assembly. Refer to:

      REMOVAL [08/2015 - 08/2019]

      REMOVAL [08/2019 - ]

  2. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the nut and clip, and disconnect the transmission control cable from the automatic transmission.

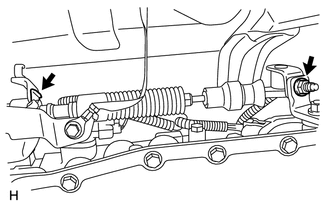

      GTY581895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut and disconnect the transmission control cable support.
      GTY610822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect transmission control cable end from the shift lever.

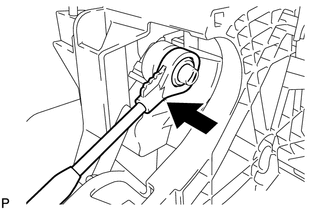

      GTY244941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the clip and disconnect the transmission control cable from the shift lever retainer.

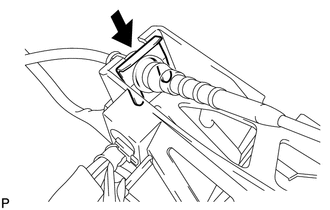

      GTY546215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 bolts and remove the column shift transmission control cable toward the vehicle interior.
      GTY609782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
