Installation [08/2015 - ]: Procedure

1. Insert the floor shift transmission control cable from the vehicle interior, and install the cable retainer with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.5 N.m (56 kgf/cm, 49 in.*lbf)

2. Install the cable outer of the transmission control cable to the shift lever retainer, and install a new clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Connect the control cable end to the shift lever.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

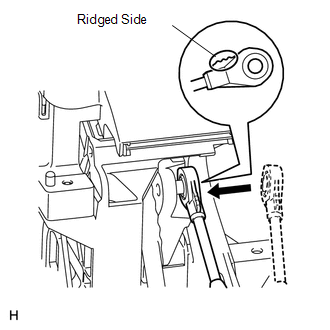

   Make sure to install the cable end so that the inner cable is not twisted. Confirm that the cable end's ridged side is facing upward.

4. Move the shift lever to N.
5. Turn the control shaft lever counterclockwise until it stops, and then turn it clockwise 2 notches to set it to the N position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Connect the control cable with a new clip and the nut.

   Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

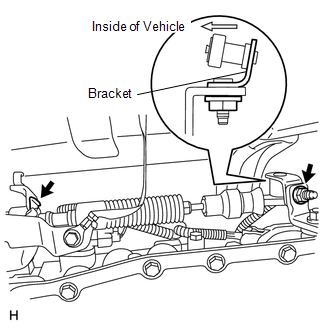

   When connecting the cable to the transmission control shaft lever, make sure the cable's L bracket faces the inside of the vehicle.

7. Connect the transmission control cable support with the nut.

   Torque: 5.4 N.m (55 kgf/cm, 48 in.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
