Installation [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

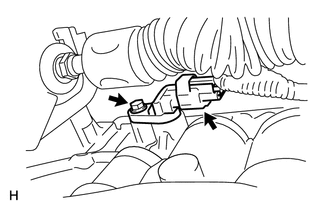

  1. INSTALL SPEED SENSOR SP2
    1. Coat a new O-ring with ATF and install it to the sensor.
    2. Install the sensor with the bolt.
      GTY603614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N.m (55 kgf/cm, 48 in.*lbf)

    3. Connect the sensor connector.

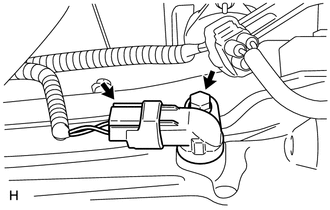

  2. INSTALL SPEED SENSOR NT
    1. Coat a new O-ring with ATF and install it to the sensor.
    2. Install the sensor with the bolt.
      GTY611380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N.m (55 kgf/cm, 48 in.*lbf)

    3. Connect the sensor connector.
  3. INSPECT FOR AUTOMATIC TRANSMISSION FLUID LEAK
