Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT CONSOLE BOX ASSEMBLY
    1. Remove the front console box assembly. Refer to:

      REMOVAL [08/2015 - 08/2019]

      REMOVAL [08/2019 - ]

  2. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Disconnect the transmission control cable end from the shift lever.

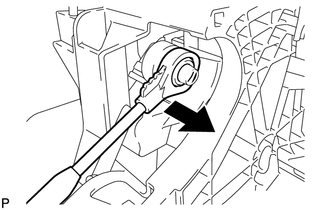

      GTY599194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip and disconnect the transmission control cable from the shift lever retainer.

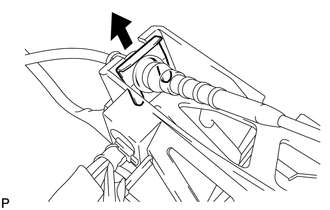

      GTY546214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. Disconnect the clamp and 2 connectors.

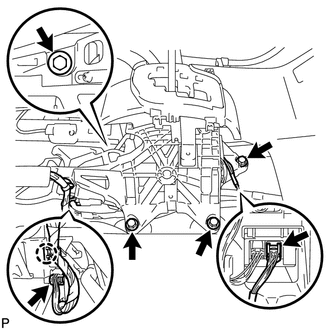

      GTY546216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and transmission floor shift assembly.
