Reassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL SHIFT LOCK CONTROL ECU

Engage the 3 claws, and install the shift lock control ECU.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the shift lock solenoid connector.

INSTALL LOWER POSITION INDICATOR HOUSING

Engage the 6 claws, and install the lower position indicator housing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SHIFT LOCK RELEASE BUTTON

Engage the 2 claws, and install the shift lock release spring and shift lock release button.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 2 POSITION INDICATOR SLIDE COVER

Install the No. 2 position indicator slide cover to the position indicator slide cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL POSITION INDICATOR SLIDE COVER

Install the position indicator slide cover with the No. 2 position indicator slide cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Install the position indicator slide cover so that its mark faces the vehicle front.

INSTALL POSITION INDICATOR HOUSING ASSEMBLY

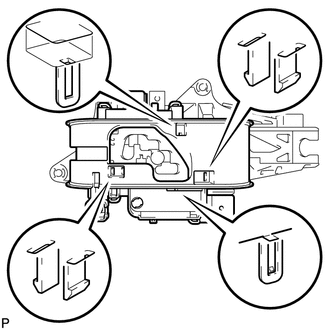

Engage the 4 claws, and install the position indicator housing.

INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

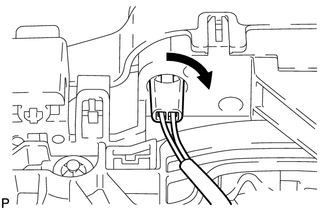

Align the wire with the key part of the position indicator housing lower, and install the wire. Then rotate the wire clockwise until it locks.

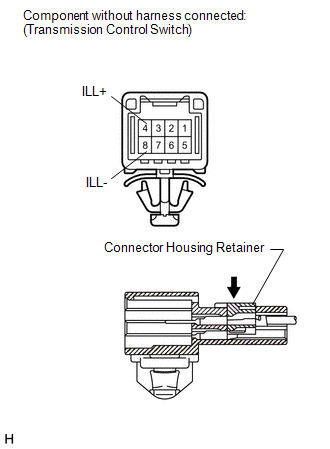

Securely connect the 2 wire terminals to terminal 4 (ILL+) and 8 (ILL-) of the transmission control switch connector. Then push the connector housing retainer to lock it.

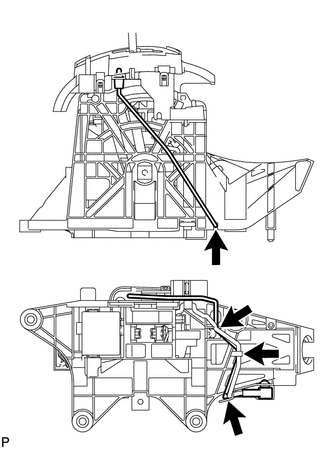

Check the indicator light wire harness as shown in the illustration.
